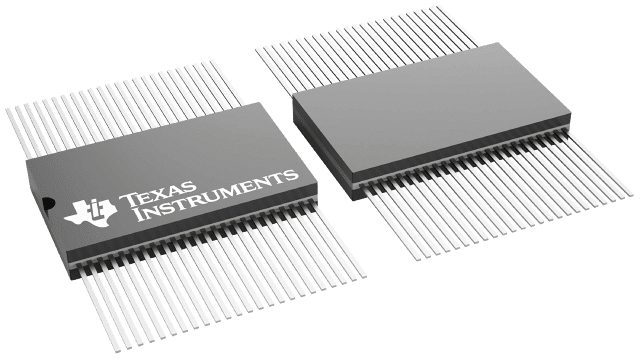

SNJ54LVTH16244AWD Texas Instruments - Yeehing Electronics
Military 16-ch, 2.7-V to 3.6-V buffers with bus-hold, TTL-compatible CMOS inputs and 3-state outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 65.209 |
| 100 — 249 | 57.963 |
| 250 — 999 | 47.649 |
| 1,000 + | 29.83 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SNJ54LVTH16244AWD Datasheet |
More Information
The 'LVTH16244A devices are 16-bit buffers and line drivers designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. These devices provide true outputs and symmetrical active-low output-enable (OE) inputs.
