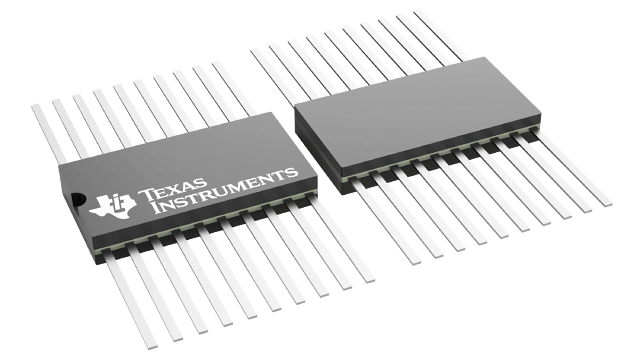

SNJ54S244W Texas Instruments - Yeehing Electronics

Military 8-ch, 4.5-V to 5.5-V bipolar buffers with 3-state outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	35.729
100 — 249	31.759
250 — 999	26.108
1,000 +	16.35

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

SNJ54S244W Datasheet

More Information

The SNx4LS24x, SNx4S24x octal buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The designer has a choice of selected combinations of inverting and non-inverting outputs, symmetrical, active-low output-control (G) inputs, and complementary output-control (G and G) inputs. These devices feature high fan-out, improved fan-in, and 400-mV noise margin. The SN74LS24x and SN74S24x devices can be used to drive terminated lines down to 133 Ω.
