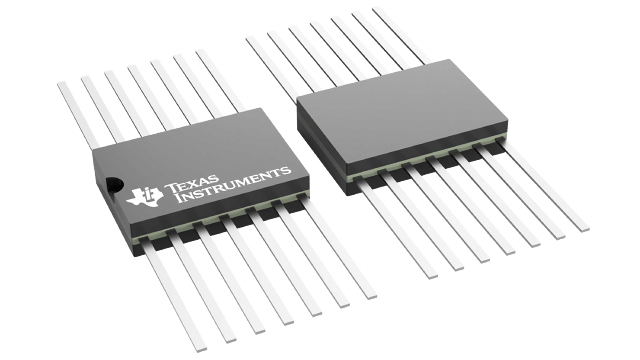

SNJ54S38W Texas Instruments - Yeehing Electronics
Military 4-ch, 2-input, 4.5-V to 5.5-V bipolar NAND gates with open-collector outputs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 25.814 |
100 — 249 | 22.946 |
250 — 999 | 18.863 |
1,000 + | 11.81 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Minimum Operating Temperature | -55 |
Maximum Operating Temperature | 125 |
Factory Pack Quantity | 1 |
Package | Pins | CFP (W) | 14 |
For more information, please refer to datasheet
Documents
SNJ54S38W Datasheet |
More Information
These devices contain four independent 2-input NAND buffer gates with open-collector outputs. The open-collector outputs require pull-up resistors to perform correctly. They may be connected to other open-collector outputs to implement active-low wired-OR or active-high wired-AND functions. Open-collector devices are often used to generate high VOH levels.
