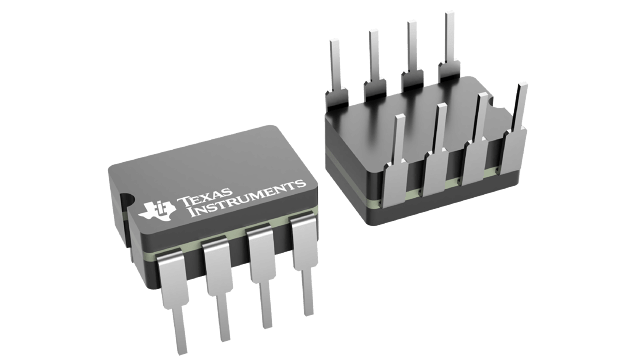

SNJ55452BJG Texas Instruments - Yeehing Electronics

Dual Very-High Speed, High-Current Peripheral Drivers

Pricing (USD)

Quantity	Unit Price
1 — 99	35.698
100 — 249	31.732
250 — 999	26.085
1,000 +	16.33

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

SNJ55452BJG Datasheet

More Information

The SN5545xB and SN7545xB devices are dual-peripheral drivers designed for use in systems that employ TTL logic. This family is functionally interchangeable with and replaces the SN75450 family and the SN75450A family devices manufactured previously. The speed of the devices is equal to that of the SN75450 family, and the parts are designed to ensure freedom from latch-up. Diode-clamped inputs simplify circuit design.
