Texas Instruments
TAS2563YBGR
TAS2563YBGR
Regular price
$0.53 USD
Regular price
Sale price
$0.53 USD
Unit price
per
Couldn't load pickup availability

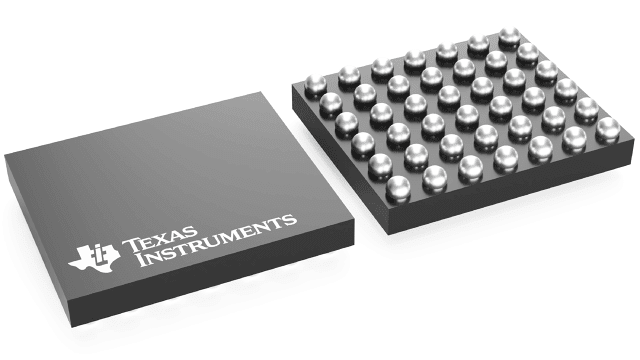

TAS2563YBGR Texas Instruments - Yeehing Electronics
6.1-W, digital input, smart amp & integrated speaker protection, advanced EQ & 11-V Class-H boost
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.967 |
| 100 — 249 | 1.624 |
| 250 — 999 | 1.167 |
| 1,000 + | 0.53 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS2563 |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 6.1 W x 1 at 4 Ohms |
| Mounting Style | SMD/SMT |
| Type | Speaker |
| Package / Case | DSBGA-42 |
| THD plus Noise | 0.01 % |
| Supply Voltage - Max | 1.95 V |
| Supply Voltage - Min | 1.62 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Input Type | Digital |
| Output Current | 3.75 A |
| Brand | Texas Instruments |
| Number of Channels | 1 Channel |
| Shutdown | Shutdown |
| Product Type | Audio Amplifiers |
| Factory Pack Quantity | 3000 |
| Subcategory | Audio ICs |
For more information, please refer to datasheet
Documents
| TAS2563YBGR Datasheet |
More Information
The TAS2563 is a digital input Class-D audio amplifier optimized for efficiently driving high peak power into small loudspeakers. The Class-D amplifier is capable of delivering 6.1 W of peak power into a 4 Ω load at battery voltage of 3.6 V using the integrated 11.5V Class-H boost, or 10W peak power into 4Ω load in boost bypass mode using external 12V supply.
