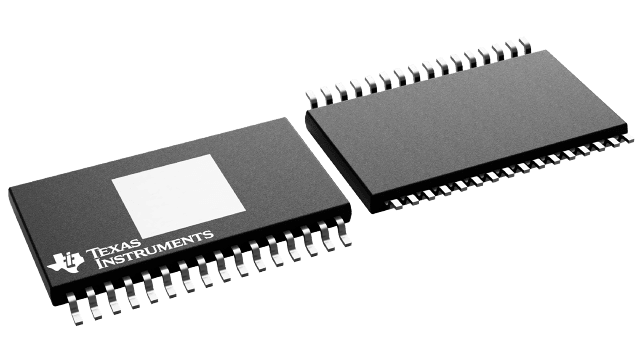

TAS5102DAD Texas Instruments - Yeehing Electronics

20-W stereo, 8- to 23-V supply, PWM input Class-D audio amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	4.736
100 — 249	3.861
250 — 999	3.035
1,000 +	1.80

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Audio Amplifiers
RoHS	Y
Series	TAS5102
Product	Audio Amplifiers
Class	Class-AB
Output Power	20 W
Mounting Style	SMD/SMT
Type	2-Channel Stereo or 4-Channel Stereo
Package / Case	HTSSOP-32
Audio - Load Impedance	8 Ohms
THD plus Noise	0.05 % to 0.15 %
Supply Voltage - Max	23 V
Supply Voltage - Min	8 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Packaging	Reel
Description/Function	Speaker
Height	1.15 mm
Input Type	Differential or Single
Length	11 mm
Output Type	2-Channel Stereo, 4-Channel Stereo
Supply Type	Dual
Width	6.2 mm
Brand	Texas Instruments
Number of Channels	4 Channel
Shutdown	Shutdown
Supply Current - Max	50 mA, 10 mA
Development Kit	TAS5102EVM
Dual Supply Voltage	3.3 V, 18 V
GBP - Gain Bandwidth Product	-
Ib - Input Bias Current	-
Maximum Dual Supply Voltage	3.6 V, 23 V
Minimum Dual Supply Voltage	3 V, 8 V
Moisture Sensitive	Yes
Operating Supply Current	35 mA, 6.5 mA
Operating Supply Voltage	8 V to 23 V
Output Current per Channel	-
Output Signal Type	Differential, Single
Pd - Power Dissipation	600 mW
Product Type	Audio Amplifiers
SR - Slew Rate	-
Factory Pack Quantity	2000
Subcategory	Audio ICs
Unit Weight	0.006388 oz

For more information, please refer to datasheet

Documents

TAS5102DAD Datasheet

More Information

The TAS5102/TAS5103 are integrated stereo digital amplifier power stages with an advanced protection system. The TAS5102/TAS5103 are capable of driving an 8-Ω bridge-tied load (BTL) at up to 20 W/15 W per channel with low integrated noise at the output, low THD+N performance, and low idle power dissipation.
