Description

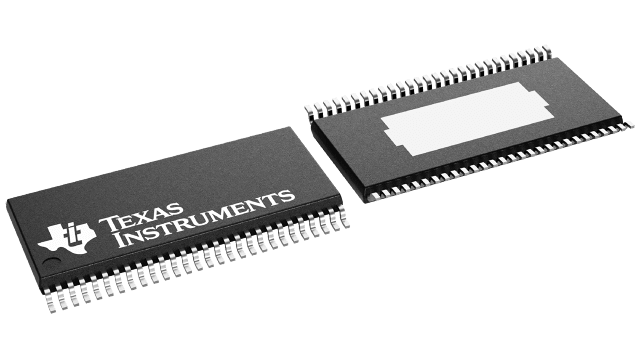

TAS5122DCA Texas Instruments - Yeehing Electronics
50-W stereo, 0- to 25.5-V supply, PWM input Class-D audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.382 |
| 100 — 249 | 9.279 |
| 250 — 999 | 7.293 |
| 1,000 + | 4.33 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5122 |
| Product | Audio Amplifiers |
| Class | Class-AB |
| Output Power | 37 W |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Stereo |
| Package / Case | HTSSOP-56 |
| Audio - Load Impedance | 8 Ohms |
| THD plus Noise | 0.2 % |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Tube |
| Description/Function | Speaker |
| Height | 1.15 mm |
| Input Type | Single |
| Length | 14 mm |
| Supply Type | Triple |
| Width | 6.1 mm |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| Supply Current - Max | 5 mA, 24 mA |
| Dual Supply Voltage | 3.3 V, 23 V |
| Maximum Dual Supply Voltage | 3.6 V, 25.5 V |
| Minimum Dual Supply Voltage | 0 V, 3 V, 16 V |
| Moisture Sensitive | Yes |
| Operating Supply Current | 1 mA |
| Output Signal Type | Differential |
| Product Type | Audio Amplifiers |
| Factory Pack Quantity | 35 |
| Subcategory | Audio ICs |
| Unit Weight | 0.008356 oz |
For more information, please refer to datasheet
Documents
| TAS5122DCA Datasheet |
More Information
The TAS5122 is a high-performance, integrated stereo digital amplifier power stage designed to drive 6- speakers at up to 30 W per channel. The device incorporates TIs PurePath Digital technology and is used in conjunction with a digital audio PWM processor (TAS50XX) and a simple passive demodulation filter to deliver high-quality, high-efficiency, true-digital audio amplification.
