Texas Instruments

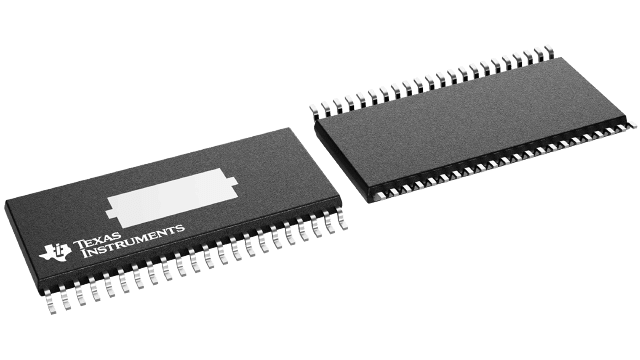

TAS5132DDVR
TAS5132DDVR
Regular price
$1.82 USD
Regular price
Sale price
$1.82 USD
Unit price
per
Couldn't load pickup availability
TAS5132DDVR Texas Instruments - Yeehing Electronics
20-W stereo, 40-W mono, 0- to 19-V supply, PWM input Class-D audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.256 |
| 100 — 249 | 4.606 |
| 250 — 999 | 3.229 |
| 1,000 + | 1.82 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5132 |
| Product | Audio Amplifiers |
| Class | Class-AB |
| Output Power | 26 W |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Stereo or 4-Channel Stereo |
| Package / Case | HTSSOP-44 |
| Audio - Load Impedance | 8 Ohms |
| THD plus Noise | 0.02 % |
| Supply Voltage - Max | 13.2 V |
| Supply Voltage - Min | 10.8 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Reel |
| Description/Function | Speaker |
| Height | 1.05 mm |
| Input Type | Single |
| Length | 14 mm |
| Supply Type | Triple |
| Width | 6.1 mm |
| Brand | Texas Instruments |
| Number of Channels | 4 Channel |
| Shutdown | Shutdown |
| Supply Current - Max | 9 mA |
| Dual Supply Voltage | 12 V, 18 V |
| GBP - Gain Bandwidth Product | - |
| Ib - Input Bias Current | - |
| Maximum Dual Supply Voltage | 13.2 V, 13.2 V, 19 V |
| Minimum Dual Supply Voltage | 0 V, 10.8 V |
| Moisture Sensitive | Yes |
| Operating Supply Current | 6 mA |
| Output Current per Channel | - |
| Output Signal Type | Differential, Single |
| Pd - Power Dissipation | 600 mW |
| Product Type | Audio Amplifiers |
| SR - Slew Rate | - |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
| Vos - Input Offset Voltage | - |
For more information, please refer to datasheet
Documents
| TAS5132DDVR Datasheet |
More Information
The TAS5132 is an integrated stereo digital amplifier power stage with an advanced protection system. The TAS5132 is capable of driving a 6- bridge-tied load (BTL) at up to 25 W per channel with low integrated noise at the output, low THD+N performance, and low idle power dissipation.
