Texas Instruments
TAS5142DDVR
TAS5142DDVR
Regular price
$0.57 USD
Regular price
Sale price
$0.57 USD
Unit price
per
Couldn't load pickup availability

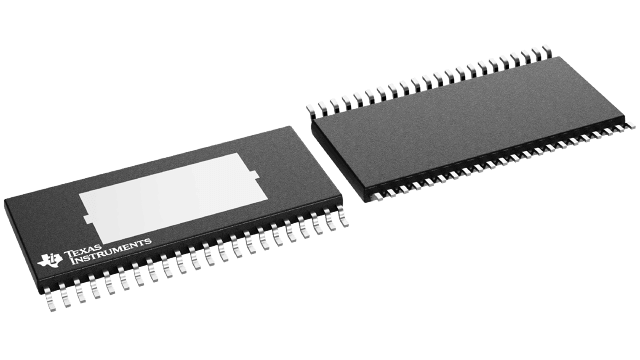

TAS5142DDVR Texas Instruments - Yeehing Electronics
100-W stereo, 200-W mono, 0- to 34-V supply, PWM input Class-D audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.865 |
| 100 — 249 | 7.227 |
| 250 — 999 | 5.68 |
| 1,000 + | 0.57 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5142 |
| Product | Audio Amplifiers |
| Class | Class-AB |
| Output Power | 100 W |
| Mounting Style | SMD/SMT |
| Type | 1-Channel Mono or 2-Channel Stereo or 4-Channel Stereo |
| Package / Case | HTSSOP-44 |
| Audio - Load Impedance | 2 Ohms |
| THD plus Noise | 0.1 % |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Reel |
| Description/Function | Speaker |
| Height | 1.05 mm |
| Input Type | Single |
| Length | 14 mm |
| Output Type | 1-Channel Mono, 2-Channel Stereo, 4-Channel Stereo |
| Supply Type | Triple |
| Width | 6.1 mm |
| Brand | Texas Instruments |
| Number of Channels | 4 Channel |
| Supply Current - Max | 17 mA, 16 mA, 25 mA |
| Dual Supply Voltage | 12 V, 32 V |
| Maximum Dual Supply Voltage | 13.2 V, 13.2 V, 34 V |
| Minimum Dual Supply Voltage | 0 V, 10.8 V |
| Moisture Sensitive | Yes |
| Operating Supply Current | 7 mA, 5 mA, 15 mA |
| Output Signal Type | Differential |
| Product Type | Audio Amplifiers |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
For more information, please refer to datasheet
Documents
| TAS5142DDVR Datasheet |
More Information
The TAS5142 is a third-generation, high-performance, integrated stereo digital amplifier power stage with an improved protection system. The TAS5142 is capable of driving a 4- bridge-tied load (BTL) at up to 100 W per channel with low integrated noise at the output, low THD+N performance, and low idle power dissipation.
