Texas Instruments
TAS5162DDV
TAS5162DDV
Regular price
$5.34 USD
Regular price
Sale price
$5.34 USD
Unit price
per
Couldn't load pickup availability

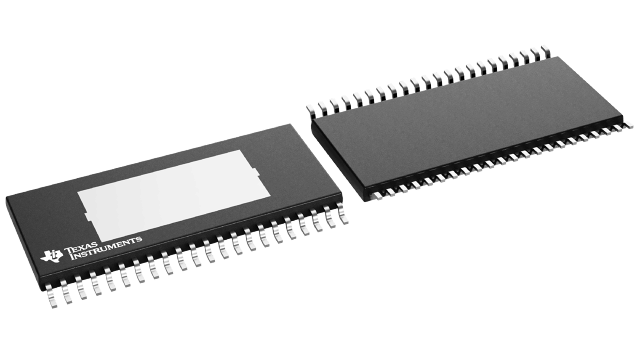

TAS5162DDV Texas Instruments - Yeehing Electronics
160-W stereo, 300-W mono, 0- to 52.5-V supply, PWM input Class-D audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 12.654 |
| 100 — 249 | 11.053 |
| 250 — 999 | 8.523 |
| 1,000 + | 5.34 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5162 |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 400 W |
| Mounting Style | SMD/SMT |
| Type | 1-Channel Mono or 2-Channel Stereo |
| Package / Case | HTSSOP-44 |
| Audio - Load Impedance | 3 Ohms |
| THD plus Noise | 0.09 % |
| Supply Voltage - Max | 13.2 V, 52.5 V |
| Supply Voltage - Min | 0 V, 10.8 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Tube |
| Description/Function | Speaker |
| Height | 1.05 mm |
| Input Type | Single |
| Length | 14 mm |
| Output Type | 1-Channel Mono, 2-Channel Stereo |
| Supply Type | Triple |
| Width | 6.1 mm |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| Dual Supply Voltage | 12 V, 50 V |
| Maximum Dual Supply Voltage | 13.2 V, 52.5 V |
| Minimum Dual Supply Voltage | 0 V, 10.8 V |
| Moisture Sensitive | Yes |
| Operating Supply Current | 10 mA, 8 mA, 15 mA |
| Operating Supply Voltage | 12 V, 50 V |
| Output Signal Type | Differential |
| Pd - Power Dissipation | 2.5 W |
| Product Type | Audio Amplifiers |
| Factory Pack Quantity | 35 |
| Subcategory | Audio ICs |
| Unit Weight | 0.009263 oz |
For more information, please refer to datasheet
Documents
| TAS5162DDV Datasheet |
More Information
The TAS5162 is a high performance, integrated stereo digital amplifier power stage with an improved protection system. The TAS5162 is capable of driving a 6- bridge-tied load (BTL) at up to 210 W per channel at THD = 10%, low integrated noise at the output, low THD+N performance without clipping, and low idle power dissipation.
