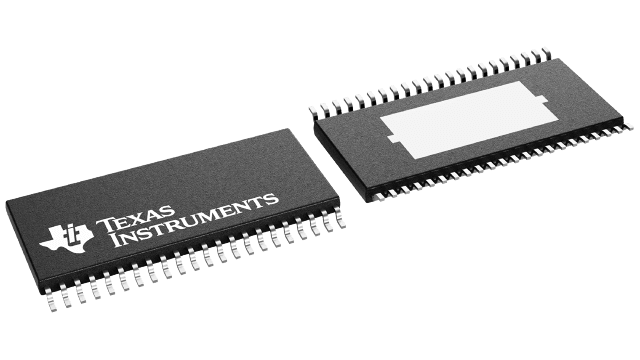

TAS5176DDW Texas Instruments - Yeehing Electronics
100-W 5.1 channel, 0- to 34-V supply, PWM input Class-D audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.968 |
| 100 — 249 | 9.58 |
| 250 — 999 | 7.387 |
| 1,000 + | 4.62 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5176 |
| Product | Audio Amplifiers |
| Class | Class-AB |
| Output Power | 40 W |
| Mounting Style | SMD/SMT |
| Type | 3-Channel Stereo or 6-Channel Stereo |
| Package / Case | HTSSOP-44 |
| Audio - Load Impedance | 3 Ohms |
| THD plus Noise | 0.2 % |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Tube |
| Description/Function | Speaker |
| Height | 1.05 mm |
| Input Type | Single |
| Length | 14 mm |
| Output Type | 3-Channel Stereo, 6-Channel Stereo |
| Supply Type | Triple |
| Width | 6.1 mm |
| Brand | Texas Instruments |
| Number of Channels | 6 Channel |
| Supply Current - Max | 20 mA, 22 mA |
| Development Kit | TAS5176DDW6EVM |
| Dual Supply Voltage | 12 V, 31 V |
| Maximum Dual Supply Voltage | 13.2 V, 13.2 V, 34 V |
| Minimum Dual Supply Voltage | 0 V, 10.8 V |
| Moisture Sensitive | Yes |
| Operating Supply Current | 5 mA, 7 mA, 180 mA |
| Output Signal Type | Differential, Single |
| Product Type | Audio Amplifiers |
| Factory Pack Quantity | 35 |
| Subcategory | Audio ICs |
| Unit Weight | 0.022646 oz |
For more information, please refer to datasheet
Documents
| TAS5176DDW Datasheet |
More Information
The TAS5176 is a high-performance, six-channel, digital-amplifier power stage with an improved protection system. The TAS5176 is capable of driving a 8-, single-ended subwoofer greater than 25 W at 10% THD+N performance.
