Texas Instruments
TAS5186ADDVR
TAS5186ADDVR
Regular price
$4.76 USD
Regular price
Sale price
$4.76 USD
Unit price
per
Couldn't load pickup availability

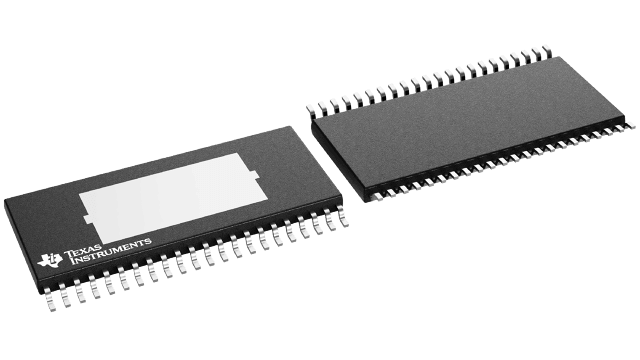

TAS5186ADDVR Texas Instruments - Yeehing Electronics
210-W 5.1 channel, 0- to 34-V supply, PWM input Class-D audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.29 |
| 100 — 249 | 9.861 |
| 250 — 999 | 7.604 |
| 1,000 + | 4.76 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5186A |
| Product | Audio Amplifiers |
| Output Power | 30 W |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-44 |
| Audio - Load Impedance | 3 Ohms |
| THD plus Noise | 0.07 % |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Reel |
| Description/Function | Digital Amplifier Power Stage |
| Height | 1.05 mm |
| Input Type | Single |
| Length | 8.3 mm |
| Output Type | 1-Channel Mono, 5-Channel Stereo |
| Supply Type | Triple |
| Width | 14.1 mm |
| Brand | Texas Instruments |
| Supply Current - Max | 22 mA at 12 V |
| Dual Supply Voltage | 3 V, 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V |
| Maximum Dual Supply Voltage | 13.2 V, 40 V |
| Minimum Dual Supply Voltage | 0 V, 10.8 V |
| Moisture Sensitive | Yes |
| Operating Supply Current | 22 mA |
| Output Signal Type | Differential |
| Product Type | Audio Amplifiers |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
For more information, please refer to datasheet
Documents
| TAS5186ADDVR Datasheet |
More Information
The TAS5186A is a high-performance, six-channel, digital-amplifier power stage with an improved protection system. The TAS5186A is capable of driving a 6-, single-ended subwoofer greater than 60 W at 10% THD+N performance.
