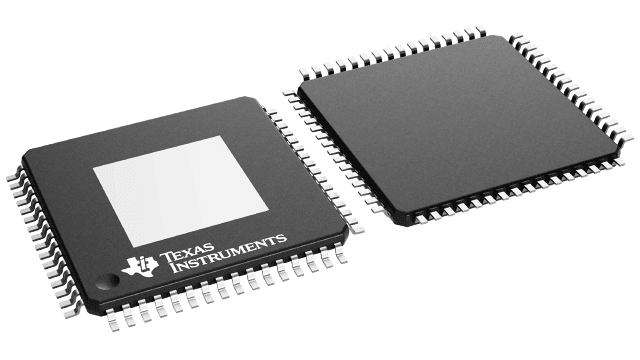

TAS5414CTPHD Texas Instruments - Yeehing Electronics
28-W, 4-ch, 6- to 24-V supply, analog SE input Class-D audio amplifier w/ I2C diag & load dump
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.115 |
| 100 — 249 | 9.062 |
| 250 — 999 | 7.122 |
| 1,000 + | 4.23 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5414C |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 23 W |
| Mounting Style | SMD/SMT |
| Type | 4-Channel Automotive |
| Package / Case | HTQFP-64 |
| Audio - Load Impedance | 4 Ohms |
| THD plus Noise | 0.02 % |
| Supply Voltage - Max | 24 V |
| Supply Voltage - Min | 6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Tray |
| Input Type | Single-Ended |
| Output Type | 4-Channel Stereo |
| Supply Type | Single |
| Brand | Texas Instruments |
| Number of Channels | 4 Channel |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 75 dB |
| Factory Pack Quantity | 90 |
| Subcategory | Audio ICs |
| Unit Weight | 0.021016 oz |
For more information, please refer to datasheet
Documents
| TAS5414CTPHD Datasheet |
More Information
The TAS5414C is a four-channel Class-D audio amplifier designed for use in automotive head units and external amplifier modules. It provides four channels at 23 W continuously into 4 Ω at less than 1% THD+N from a 14.4-V supply. Each channel can also deliver 38 W into 2 Ω at 1% THD+N. The TAS5414C uses single-ended analog inputs. The class-D PWM topology of the device provides dramatic improvements in efficiency over traditional linear amplifier solutions. This reduces the power dissipated by the amplifier by a factor of ten under typical music playback conditions. The device has a built-in load diagnostic functions for detecting and diagnosing misconnected outputs to help to reduce test time during the manufacturing process.
