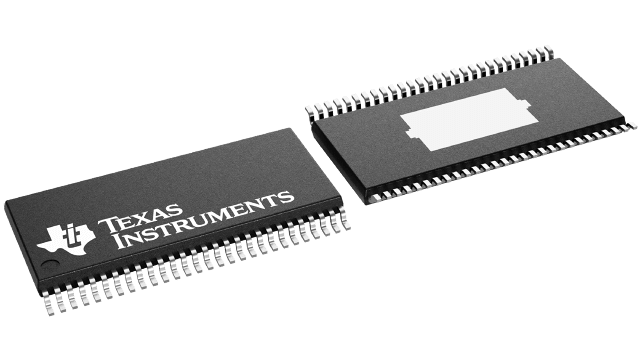

TAS5601DCA Texas Instruments - Yeehing Electronics
20-W stereo, 10- to 26-V supply, PWM SE input Class-D audio amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.911 |
100 — 249 | 4.004 |
250 — 999 | 3.147 |
1,000 + | 1.87 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Audio Amplifiers |
RoHS | Y |
Series | TAS5601 |
Product | Audio Amplifiers |
Class | Class-D |
Output Power | 20 W |
Mounting Style | SMD/SMT |
Type | 1-Channel Mono or 2-Channel Stereo or 4-Channel Stereo |
Package / Case | HTSSOP-56 |
Audio - Load Impedance | 8 Ohms |
THD plus Noise | 0.04 % |
Supply Voltage - Max | 26 V |
Supply Voltage - Min | 10 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Description/Function | Speaker |
Height | 1.15 mm |
Input Type | Differential |
Length | 14 mm |
Output Type | 1-Channel Mono, 2-Channel Stereo, 4-Channel Stereo |
Supply Type | Single |
Width | 6.1 mm |
Brand | Texas Instruments |
Number of Channels | 4 Channel |
Supply Current - Max | 22 mA at 24 V |
Development Kit | TAS5601EVM4 |
Dual Supply Voltage | 3.3 V, 12 V, 15 V, 18 V, 24 V |
Maximum Dual Supply Voltage | 4.2 V, 20 V, 26 V |
Minimum Dual Supply Voltage | 3 V, 10 V |
Moisture Sensitive | Yes |
Operating Supply Current | 11 mA at 24 V |
Operating Supply Voltage | 12 V, 15 V, 18 V, 24 V |
Output Signal Type | Differential, Single |
Pd - Power Dissipation | 5500 mW |
Product Type | Audio Amplifiers |
Factory Pack Quantity | 2000 |
Subcategory | Audio ICs |
Unit Weight | 0.008356 oz |
For more information, please refer to datasheet
Documents
TAS5601DCA Datasheet |
More Information
The TAS5601 is a 20-W (per channel) efficient, stereo digital amplifier power stage for driving 4 single-ended speakers, 2 bridge-tied speakers, or combination of single and bridge-tied loads. The TAS5601 can drive a speaker with an impedance as low as 4Ω. The high efficiency, >90% into 8-Ω loads, of the TAS5601 eliminates the need for an external heat sink.
