Texas Instruments
TAS5613APHD
TAS5613APHD
Regular price
$5.06 USD
Regular price
Sale price
$5.06 USD
Unit price
per
Couldn't load pickup availability

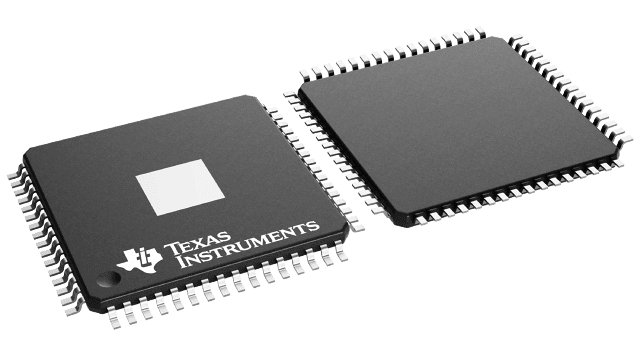

TAS5613APHD Texas Instruments - Yeehing Electronics
150-W stereo, 300-W mono, 18- to 38-V supply, analog input Class-D audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.994 |
| 100 — 249 | 10.476 |
| 250 — 999 | 8.078 |
| 1,000 + | 5.06 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5613A |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 150 W |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Stereo |
| Package / Case | HTQFP-64 |
| THD plus Noise | 0.05 % |
| Supply Voltage - Max | 38 V |
| Supply Voltage - Min | 18 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Reel |
| Description/Function | HD analog-input power stage |
| Input Type | Analog |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| Supply Current - Max | 20 mA |
| GBP - Gain Bandwidth Product | 80 kHz |
| Moisture Sensitive | Yes |
| Operating Supply Current | 20 mA |
| Pd - Power Dissipation | 1.8 W |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 80 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.017506 oz |
For more information, please refer to datasheet
Documents
| TAS5613APHD Datasheet |
More Information
The TAS5613A is a high-performance analog input Class D amplifier with integrated closed loop feedback technology (known as PurePath™ HD). It has the ability to drive up to 150 W.Achievable output power levels are dependent on the thermal configuration of the target application. A high performance thermal interface material between the package exposed heatslug and the heat sink should be used to achieve high output power levels Stereo into 4Ω speakers from a single 36V supply.
