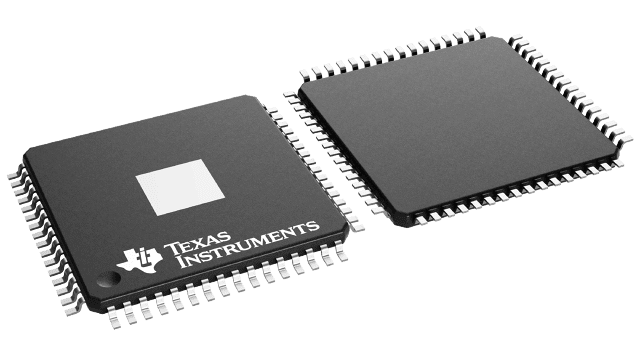

TAS5614APHD Texas Instruments - Yeehing Electronics
150-W stereo, 300-W mono, 18- to 38-V supply PWM input Class-D audio amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 10.473 |
100 — 249 | 9.148 |
250 — 999 | 7.053 |
1,000 + | 4.42 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Audio Amplifiers |
RoHS | Y |
Series | TAS5614A |
Product | Audio Amplifiers |
Class | Class-D |
Output Power | 150 W, 300 W |
Mounting Style | SMD/SMT |
Type | 1-Channel Mono or 2-Channel Stereo |
Package / Case | HTQFP-64 |
THD plus Noise | 0.03 % |
Supply Voltage - Max | 38 V |
Supply Voltage - Min | 18 V |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 70 C |
Packaging | Reel |
Description/Function | HD digital-input power stage |
Brand | Texas Instruments |
Number of Channels | 2 Channel |
Supply Current - Max | 20 mA |
GBP - Gain Bandwidth Product | 80 kHz |
Moisture Sensitive | Yes |
Operating Supply Current | 20 mA |
Pd - Power Dissipation | 2.6 W |
Product Type | Audio Amplifiers |
PSRR - Power Supply Rejection Ratio | 80 dB |
Factory Pack Quantity | 1000 |
Subcategory | Audio ICs |
Unit Weight | 0.017506 oz |
For more information, please refer to datasheet
Documents
TAS5614APHD Datasheet |
More Information
The TAS5614A is a high performance digital input Class D amplifier with integrated closed loop feedback technology (known as PurePath™ HD) with the ability to drive up to 150W Achievable output power levels are dependent on the thermal configuration of the target application. A high performance thermal interface material between the package exposed heatslug and the heat sink should be used to achieve high output power levels. Stereo into 4 to 8 Ω Speakers from a single 36V supply.
