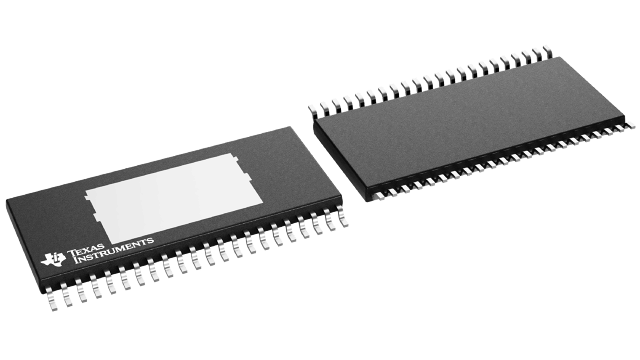

TAS5624ADDV Texas Instruments - Yeehing Electronics
150-W stereo, 400-W mono, 12- to 38-V, PWM input Class-D audio amplifier w/ thermal enhancement
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.231 |
| 100 — 249 | 6.316 |
| 250 — 999 | 4.87 |
| 1,000 + | 3.05 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5624A |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 150 W |
| Mounting Style | SMD/SMT |
| Type | Mono, Stereo |
| Package / Case | HTSSOP-44 |
| THD plus Noise | 0.025 % |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Tube |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 20 mA |
| Pd - Power Dissipation | 1 W |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 65 dB |
| Factory Pack Quantity | 35 |
| Subcategory | Audio ICs |
| Unit Weight | 0.011662 oz |
For more information, please refer to datasheet
Documents
| TAS5624ADDV Datasheet |
More Information
The TAS5624A device is a thermally-enhanced version of the class-D power amplifier based on the TAS5614A using large MOSFETs for improved power efficiency and a novel gate-drive scheme for reduced losses in idle and at low-output signals leading to reduced heat sink size.
