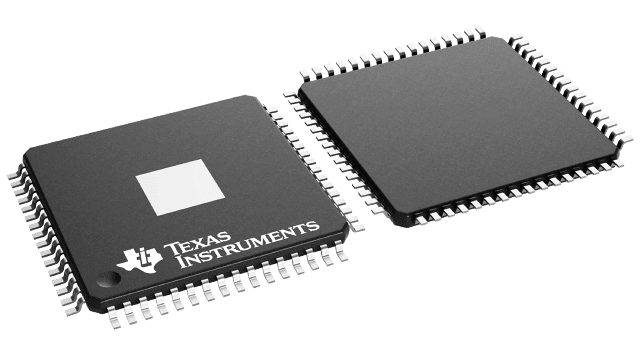

TAS5630BPHDR Texas Instruments - Yeehing Electronics

300-W stereo, 400-W mono, 25- to 52.5-V supply, analog input Class-D audio amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	16.462
100 — 249	14.38
250 — 999	11.087
1,000 +	6.94

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Audio Amplifiers
RoHS	Y
Series	TAS5630B
Product	Audio Amplifiers
Class	Class-D, Class-G
Output Power	300 W, 600 W
Mounting Style	SMD/SMT
Type	1-Channel Mono or 2-Channel Stereo
Package / Case	HTQFP-64
THD plus Noise	10 %
Supply Voltage - Max	52.5 V
Supply Voltage - Min	25 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Packaging	Reel
Input Type	Analog
Brand	Texas Instruments
Number of Channels	4 Channel
Moisture Sensitive	Yes
Operating Supply Current	22.5 mA
Operating Supply Voltage	25 V to 52.5 V
Pd - Power Dissipation	2.7 W
Product Type	Audio Amplifiers
PSRR - Power Supply Rejection Ratio	80 dB
Factory Pack Quantity	1000
Subcategory	Audio ICs
Unit Weight	0.017506 oz

For more information, please refer to datasheet

Documents

TAS5630BPHDR Datasheet

More Information

The TAS5630B device is a high-performance analog-input class-D amplifier with integrated closed-loop feedback technology (known as PurePath HD technology) with the ability to drive up to 300 W Achievable output power levels are dependent on the thermal configuration of the target application. A high-performance thermal interface material between the exposed package heat slug and the heat sink should be used to achieve high output power levels. stereo into 4-Ω to 8-Ω speakers from a single 50-V supply.
