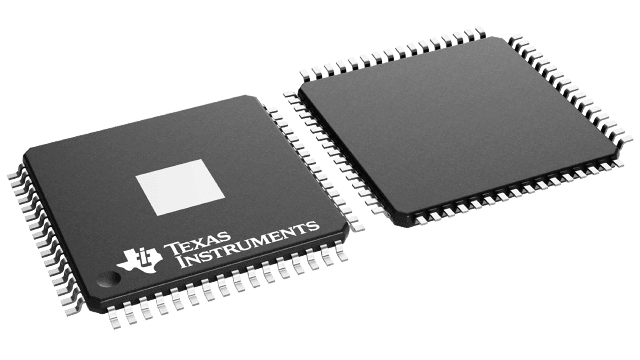

TAS5631BPHDR Texas Instruments - Yeehing Electronics
300-W stereo, 400-W mono, 25- to 52.5-V supply, PWM input Class-D audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.964 |
| 100 — 249 | 9.577 |
| 250 — 999 | 7.384 |
| 1,000 + | 4.62 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5631B |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 300 W, 600 W |
| Mounting Style | SMD/SMT |
| Type | Mono, Stereo |
| Package / Case | HTQFP-64 |
| THD plus Noise | 0.03 % |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 22.5 mA |
| Pd - Power Dissipation | 3.7 W |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 80 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.017506 oz |
For more information, please refer to datasheet
Documents
| TAS5631BPHDR Datasheet |
More Information
The TAS5631B is a high-performance PWM input class-D amplifier with integrated closed-loop feedback technology (known as PurePath HD technology) with the ability to drive up to 300 W (1) stereo into 4-Ω to 8-Ω speakers from a single 50-V supply.
