Texas Instruments
TAS5634DDV
TAS5634DDV
Regular price
$4.02 USD
Regular price
Sale price
$4.02 USD
Unit price
per
Couldn't load pickup availability

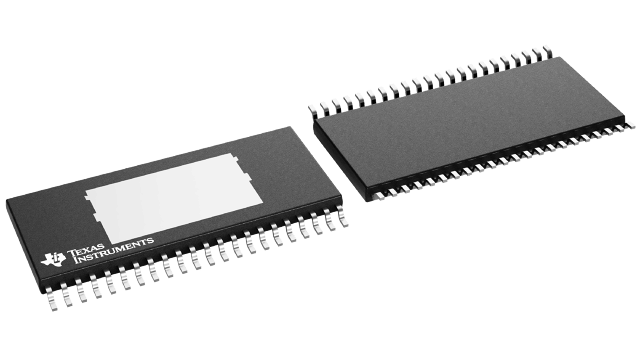

TAS5634DDV Texas Instruments - Yeehing Electronics
300-W stereo, 600-W mono, 12- to 62-V supply, PWM input Class-D audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.554 |
| 100 — 249 | 8.604 |
| 250 — 999 | 6.763 |
| 1,000 + | 4.02 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5634 |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 300 W x 2 at 6 Ohms, 600 W x 1 at 3 Ohms |
| Mounting Style | SMD/SMT |
| Type | Mono, Stereo |
| Package / Case | HTSSOP-44 |
| Audio - Load Impedance | 4 Ohms, 8 Ohms |
| THD plus Noise | 0.025 % |
| Supply Voltage - Max | 13.2 V |
| Supply Voltage - Min | 10.8 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Tube |
| Output Type | Mono, Stereo |
| Brand | Texas Instruments |
| Number of Channels | 4 Channel |
| Shutdown | Shutdown |
| Development Kit | TAS5634EVM |
| Moisture Sensitive | Yes |
| Operating Supply Current | 23 mA |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 70 dB |
| Factory Pack Quantity | 35 |
| Subcategory | Audio ICs |
| Unit Weight | 0.011760 oz |
For more information, please refer to datasheet
Documents
| TAS5634DDV Datasheet |
More Information
The TAS5634 is a PWM-input, Class-D amplifier power stage that supports 2 x 300 W (6 Ω) or 1 x 600 W (3 Ω) output power with a nominal power supply voltage of 58V. The 58V supply voltage provides support for higher impedance speaker loads including 6 Ω in BTL and 3 Ω in PBTL. Integrated MOSFETs and a new gate drive scheme provide high peak efficiency and low idle losses to reduce thermal solution size.
