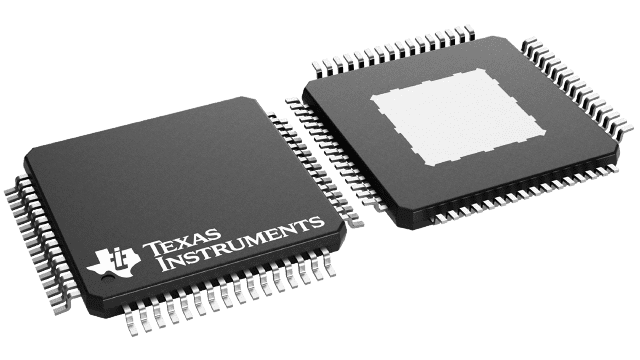

TAS5704PAP Texas Instruments - Yeehing Electronics

20-W stereo, 10- to 26-V, digital input, Class-D audio amplifier w/ speaker EQ, DRC & H/W control

Pricing (USD)

Quantity	Unit Price
1 — 99	9.86
100 — 249	8.613
250 — 999	6.641
1,000 +	4.16

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Audio Amplifiers
RoHS	Y
Series	TAS5704
Product	Audio Amplifiers
Class	Class-D
Output Power	20.6 W
Mounting Style	SMD/SMT
Type	1-Channel Mono or 2-Channel Stereo or 4-Channel Stereo
Package / Case	HTQFP-64
Audio - Load Impedance	8 Ohms
THD plus Noise	0.05 %
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Description/Function	Speaker
Height	1 mm
Input Type	Single
Length	10 mm
Output Current	20 mA
Output Type	1-Channel Mono, 2-Channel Stereo, 4-Channel Stereo
Supply Type	Dual
Width	10 mm
Brand	Texas Instruments
Number of Channels	4 Channel
Supply Current - Max	80 mA
Development Kit	TAS5704EVM
Dual Supply Voltage	3.3 V, 12 V, 15 V, 18 V, 24 V
Ib - Input Bias Current	-
Maximum Dual Supply Voltage	3.6 V, 26 V
Minimum Dual Supply Voltage	3 V, 10 V
Moisture Sensitive	Yes
Operating Supply Current	65 mA
Output Signal Type	Differential, Single
Pd - Power Dissipation	5000 mW
Product Type	Audio Amplifiers
PSRR - Power Supply Rejection Ratio	60 dB
Factory Pack Quantity	1000
Subcategory	Audio ICs
Unit Weight	0.009108 oz

For more information, please refer to datasheet

Documents

TAS5704PAP Datasheet

More Information

The TAS5704 is a 20-W, efficient, digital audio power amplifier for driving stereo bridge-tied speakers. Two serial data inputs allow processing of up to four discrete audio channels and seamless integration to most digital audio processors accepting a wide range of input data and clock rates. A hardware configurable data path allows these channels to be routed to the internal speaker drivers or output via the subwoofer PWM outputs.
