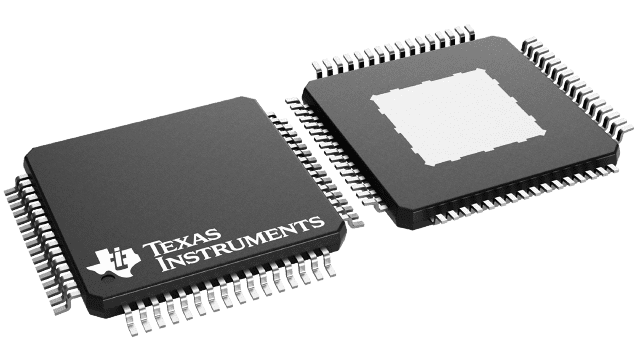

TAS5704PAPR Texas Instruments - Yeehing Electronics
20-W stereo, 10- to 26-V, digital input, Class-D audio amplifier w/ speaker EQ, DRC & H/W control
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.343 |
| 100 — 249 | 7.288 |
| 250 — 999 | 5.619 |
| 1,000 + | 3.52 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5704 |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 20.6 W |
| Mounting Style | SMD/SMT |
| Type | 1-Channel Mono or 2-Channel Stereo or 4-Channel Stereo |
| Package / Case | HTQFP-64 |
| Audio - Load Impedance | 8 Ohms |
| THD plus Noise | 0.05 % |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Description/Function | Speaker |
| Height | 1 mm |
| Input Type | Single |
| Length | 10 mm |
| Output Current | 20 mA |
| Output Type | 1-Channel Mono, 2-Channel Stereo, 4-Channel Stereo |
| Supply Type | Dual |
| Width | 10 mm |
| Brand | Texas Instruments |
| Number of Channels | 4 Channel |
| Supply Current - Max | 80 mA |
| Development Kit | TAS5704EVM |
| Dual Supply Voltage | 3.3 V, 12 V, 15 V, 18 V, 24 V |
| Ib - Input Bias Current | - |
| Maximum Dual Supply Voltage | 3.6 V, 26 V |
| Minimum Dual Supply Voltage | 3 V, 10 V |
| Moisture Sensitive | Yes |
| Operating Supply Current | 65 mA |
| Output Signal Type | Differential, Single |
| Pd - Power Dissipation | 5000 mW |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 60 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.009108 oz |
For more information, please refer to datasheet
Documents
| TAS5704PAPR Datasheet |
More Information
The TAS5704 is a 20-W, efficient, digital audio power amplifier for driving stereo bridge-tied speakers. Two serial data inputs allow processing of up to four discrete audio channels and seamless integration to most digital audio processors accepting a wide range of input data and clock rates. A hardware configurable data path allows these channels to be routed to the internal speaker drivers or output via the subwoofer PWM outputs.
