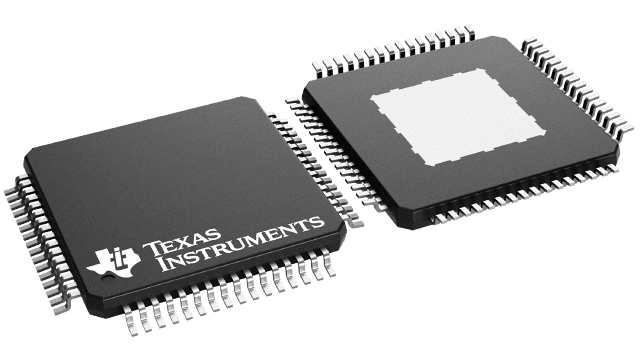

20-W stereo, 8- to 23-V supply, digital input, open loop Class-D audio amplifier w/ speaker EQ & DRC
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 8.122 |
100 — 249 | 6.621 |
250 — 999 | 5.204 |
1,000 + | 3.09 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Audio Amplifiers |
RoHS | Y |
Series | TAS5705 |
Product | Audio Amplifiers |
Class | Class-D |
Output Power | 20 W |
Mounting Style | SMD/SMT |
Type | 2-Channel Stereo or 3-Channel Stereo |
Package / Case | HTQFP-64 |
Audio - Load Impedance | 8 Ohms |
THD plus Noise | 0.12 % |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Description/Function | Headphone/Speaker |
Height | 1 mm |
Input Type | Single |
Length | 10 mm |
Output Current | 20 mA |
Output Type | 2-Channel Stereo, 3-Channel Stereo |
Supply Type | Triple |
Width | 10 mm |
Brand | Texas Instruments |
Number of Channels | 2 Channel |
Supply Current - Max | 38.5 mA, 60 mA |
Development Kit | TAS5705EVM2 |
Dual Supply Voltage | 3.3 V, 9 V, 12 V, 15 V, 18 V |
Ib - Input Bias Current | - |
Maximum Dual Supply Voltage | 3.6 V, 23 V |
Minimum Dual Supply Voltage | 3 V, 8 V |
Moisture Sensitive | Yes |
Operating Supply Current | 23 mA, 30 mA |
Output Signal Type | Differential, Single |
Pd - Power Dissipation | 600 mW |
Product Type | Audio Amplifiers |
Factory Pack Quantity | 1000 |
Subcategory | Audio ICs |
Unit Weight | 0.009108 oz |
For more information, please refer to datasheet
