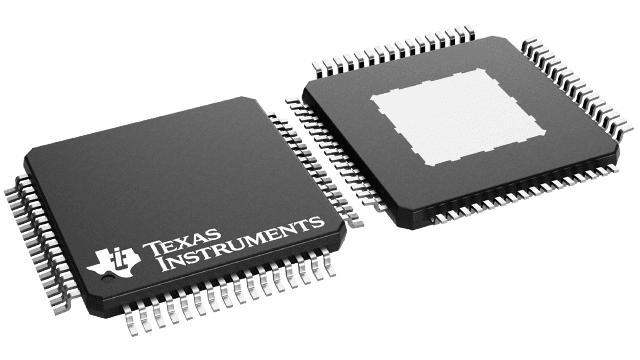

TAS5706BPAPR Texas Instruments - Yeehing Electronics

20-W stereo, 10- to 26-V, digital input, Class-D audio amplifier w/ speaker EQ & DRC, SE output

Pricing (USD)

Quantity	Unit Price
1 — 99	8.343
100 — 249	7.288
250 — 999	5.619
1,000 +	3.52

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Audio Amplifiers
RoHS	Y
Series	TAS5706B
Product	Audio Amplifiers
Class	Class-D
Output Power	20.6 W
Mounting Style	SMD/SMT
Type	1-Channel Mono or 2-Channel Stereo or 4-Channel Stereo
Package / Case	HTQFP-64
Audio - Load Impedance	8 Ohms
THD plus Noise	0.05 %
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Description/Function	Headphone/Speaker
Height	1 mm
Input Type	Single
Length	10 mm
Supply Type	Dual
Width	10 mm
Brand	Texas Instruments
Number of Channels	4 Channel
Supply Current - Max	80 mA
Dual Supply Voltage	3.3 V, 12 V, 15 V, 18 V, 24 V
Maximum Dual Supply Voltage	3.6 V, 26 V
Minimum Dual Supply Voltage	3 V, 10 V
Moisture Sensitive	Yes
Operating Supply Current	65 mA
Output Signal Type	Differential, Single
Pd - Power Dissipation	2890 mW
Product Type	Audio Amplifiers
PSRR - Power Supply Rejection Ratio	60 dB
Factory Pack Quantity	1000
Subcategory	Audio ICs
Unit Weight	0.009108 oz

For more information, please refer to datasheet

Documents

TAS5706BPAPR Datasheet

More Information

The TAS5706A/B is a 20-W, efficient, digital audio power amplifier for driving stereo bridged-tied speakers. Two serial data inputs allow processing of up to four discrete audio channels and seamless integration to most digital audio processors and MPEG decoders, accepting a wide range of input data and clock rates. A fully programmable data path allows these channels to be routed to the internal speaker drivers or output via the subwoofer or headphone PWM outputs.
