Texas Instruments
TAS5708PHPR
TAS5708PHPR
Regular price
$2.21 USD
Regular price
Sale price
$2.21 USD
Unit price
per
Couldn't load pickup availability

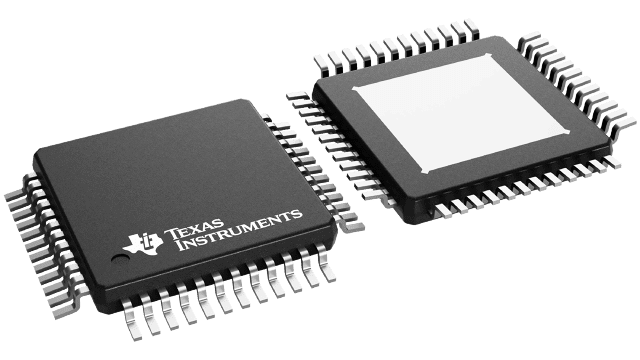

TAS5708PHPR Texas Instruments - Yeehing Electronics
20-W stereo, 10- to 26-V supply, digital input, closed loop Class-D audio amplifier w/ EQ & DRC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.802 |
| 100 — 249 | 4.73 |
| 250 — 999 | 3.717 |
| 1,000 + | 2.21 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5708 |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 20.2 W |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Stereo |
| Package / Case | HTQFP-48 |
| Audio - Load Impedance | 8 Ohms |
| THD plus Noise | 0.03 % |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Description/Function | Speaker |
| Height | 1 mm |
| Input Type | Single |
| Length | 7 mm |
| Supply Type | Quad |
| Width | 7 mm |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| Supply Current - Max | 77 mA, 60 mA |
| Dual Supply Voltage | 3.3 V, 12 V, 15 V, 18 V, 24 V |
| Maximum Dual Supply Voltage | 3.6 V, 26 V |
| Minimum Dual Supply Voltage | 3 V, 10 V |
| Moisture Sensitive | Yes |
| Operating Supply Current | 43 mA, 34 mA |
| Output Signal Type | Differential |
| Pd - Power Dissipation | 5000 mW |
| Product Type | Audio Amplifiers |
| Factory Pack Quantity | 1000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.004744 oz |
For more information, please refer to datasheet
Documents
| TAS5708PHPR Datasheet |
More Information
The TAS5708 is a 20-W, efficient, digital audio power amplifier for driving stereo bridge-tied speakers. A 32-bit datapath eliminates the need for pre-scaling before processing and preserves signal integrity without sacrificing dynamic range. A digital audio processor with fully programmable digital filters allows designers to custom tune speakers for optimum sound in small enclosures. A programmable DRC can adjust power levels for a scaleable design while also enabling night-mode listening modes.
