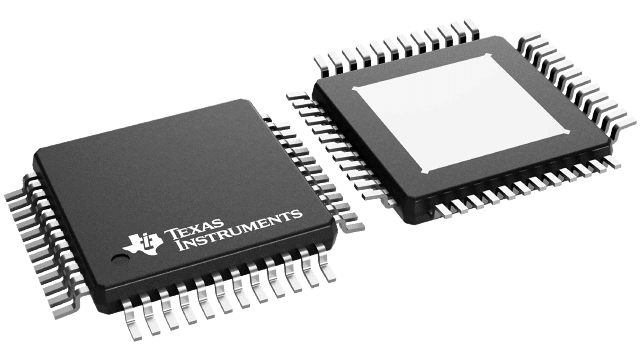

TAS5710PHP Texas Instruments - Yeehing Electronics

20-W stereo, 10- to 26-V, digital input, closed loop Class-D audio amplifier w/ EQ & 2-band DRC

Pricing (USD)

Quantity	Unit Price
1 — 99	7.202
100 — 249	5.871
250 — 999	4.615
1,000 +	2.74

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Audio Amplifiers
RoHS	Y
Series	TAS5710
Product	Audio Amplifiers
Class	Class-D
Output Power	20.2 W
Mounting Style	SMD/SMT
Type	2-Channel Stereo
Package / Case	HTQFP-48
Audio - Load Impedance	8 Ohms
THD plus Noise	0.03 %
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Description/Function	Speaker
Height	1 mm
Input Type	Single
Length	7 mm
Output Type	2-Channel Stereo
Supply Type	Quad
Width	7 mm
Brand	Texas Instruments
Number of Channels	2 Channel
Supply Current - Max	77 mA, 60 mA
Dual Supply Voltage	3.3 V, 12 V, 15 V, 18 V, 24 V
Maximum Dual Supply Voltage	3.6 V, 26 V
Minimum Dual Supply Voltage	3 V, 10 V
Moisture Sensitive	Yes
Operating Supply Current	43 mA, 34 mA
Output Signal Type	Differential
Pd - Power Dissipation	5000 mW
Product Type	Audio Amplifiers
Factory Pack Quantity	1000
Subcategory	Audio ICs
Unit Weight	0.004744 oz

For more information, please refer to datasheet

Documents

TAS5710PHP Datasheet

More Information

The TAS5710 is a 20-W, efficient, digital audio power amplifier for driving stereo bridge-tied speakers. A 32-bit datapath eliminates the need for pre-scaling before processing and preserves signal integrity without sacrificing dynamic range. A digital audio processor with fully programmable digital filters allows designers to custom tune speakers for optimum sound in small enclosures. A programmable DRC can adjust power levels for a scaleable design while also enabling night-mode listening modes.
