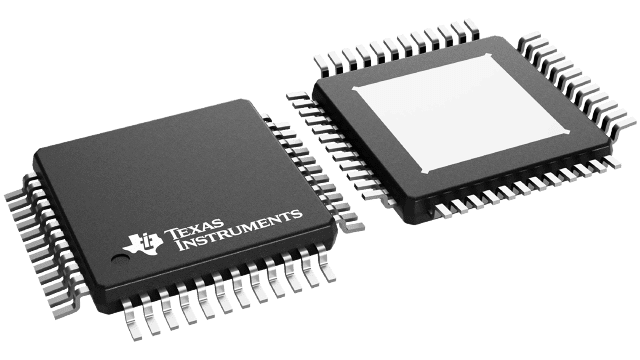

TAS5710PHPR


YeeHing #: Y002-TAS5710PHPR
Inventory: 7400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TAS5710PHPR Texas Instruments - Yeehing Electronics

20-W stereo, 10- to 26-V, digital input, closed loop Class-D audio amplifier w/ EQ & 2-band DRC

Pricing (USD)

Quantity Unit Price
1 — 99 6.241
100 — 249 5.088
250 — 999 3.999
1,000 + 2.37

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Audio Amplifiers
RoHS Y
Series TAS5710
Product Audio Amplifiers
Class Class-D
Output Power 20.2 W
Mounting Style SMD/SMT
Type 2-Channel Stereo
Package / Case HTQFP-48
Audio - Load Impedance 8 Ohms
THD plus Noise 0.03 %
Minimum Operating Temperature 0 C
Maximum Operating Temperature + 85 C
Packaging Reel
Description/Function Speaker
Height 1 mm
Input Type Single
Length 7 mm
Output Type 2-Channel Stereo
Supply Type Quad
Width 7 mm
Brand Texas Instruments
Number of Channels 2 Channel
Supply Current - Max 77 mA, 60 mA
Dual Supply Voltage 3.3 V, 12 V, 15 V, 18 V, 24 V
Maximum Dual Supply Voltage 3.6 V, 26 V
Minimum Dual Supply Voltage 3 V, 10 V
Moisture Sensitive Yes
Operating Supply Current 43 mA, 34 mA
Output Signal Type Differential
Pd - Power Dissipation 5000 mW
Product Type Audio Amplifiers
Factory Pack Quantity 1000
Subcategory Audio ICs
Unit Weight 0.004744 oz

For more information, please refer to datasheet

Documents

TAS5710PHPR Datasheet

More Information

The TAS5710 is a 20-W, efficient, digital audio power amplifier for driving stereo bridge-tied speakers. A 32-bit datapath eliminates the need for pre-scaling before processing and preserves signal integrity without sacrificing dynamic range. A digital audio processor with fully programmable digital filters allows designers to custom tune speakers for optimum sound in small enclosures. A programmable DRC can adjust power levels for a scaleable design while also enabling night-mode listening modes.
