Texas Instruments

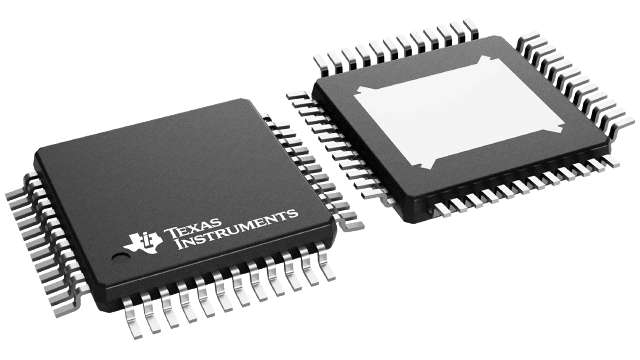

TAS5713PHPR
TAS5713PHPR
Regular price
$1.92 USD
Regular price
Sale price
$1.92 USD
Unit price
per
Couldn't load pickup availability
TAS5713PHPR Texas Instruments - Yeehing Electronics
25-W stereo, 8- to 26-V supply, digital input, open loop Class-D audio amplifier with EQ, DRC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.043 |
| 100 — 249 | 4.112 |
| 250 — 999 | 3.232 |
| 1,000 + | 1.92 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5713 |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 25 W |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Stereo |
| Package / Case | HTQFP-48 |
| THD plus Noise | 0.07 % |
| Supply Voltage - Max | 26 V |
| Supply Voltage - Min | 8 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Bass Boost Support |
| Input Type | Serial |
| Supply Type | Single |
| Brand | Texas Instruments |
| Gain | 24 dB |
| Number of Channels | 2 Channel |
| Development Kit | TAS5713PHPEVM |
| Moisture Sensitive | Yes |
| Operating Supply Current | 48 mA |
| Operating Supply Voltage | 3.3 V |
| Output Signal Type | Serial |
| Product Type | Audio Amplifiers |
| Factory Pack Quantity | 1000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.004744 oz |
For more information, please refer to datasheet
Documents
| TAS5713PHPR Datasheet |
More Information
The TAS5713 is a 25-W, efficient, digital-audio power amplifier for driving stereo bridge-tied speakers. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers.
