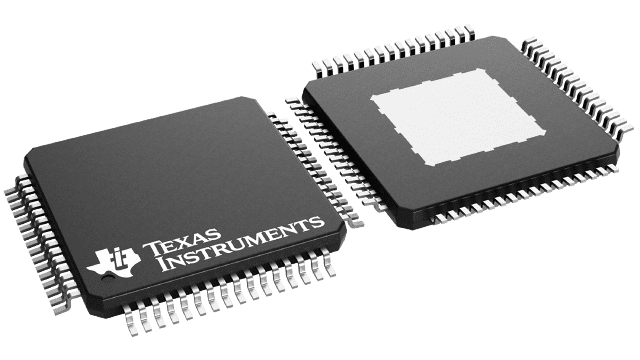

TAS5716PAP


YeeHing #: Y002-TAS5716PAP
Inventory: 3600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TAS5716PAP Texas Instruments - Yeehing Electronics

20-W stereo, 10- to 26-V, digital input, Class-D audio amplifier w/ speaker EQ, DRC & bass boost

Pricing (USD)

Quantity Unit Price
1 — 99 9.811
100 — 249 7.998
250 — 999 6.286
1,000 + 3.73

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Audio Amplifiers
RoHS Y
Series TAS5716
Product Audio Amplifiers
Class Class-D
Output Power 20.6 W
Mounting Style SMD/SMT
Type 1-Channel Mono or 2-Channel Stereo or 4-Channel Stereo
Package / Case HTQFP-64
Audio - Load Impedance 8 Ohms
THD plus Noise 0.05 %
Minimum Operating Temperature 0 C
Maximum Operating Temperature + 85 C
Packaging Tray
Description/Function Headphone/Speaker
Features 3D, Bass Boost Support
Height 1 mm
Input Type Single
Length 10 mm
Output Type 1-Channel Mono, 2-Channel Stereo, 4-Channel Stereo
Supply Type Dual
Width 10 mm
Brand Texas Instruments
Number of Channels 4 Channel
Supply Current - Max 80 mA
Dual Supply Voltage 3.3 V, 12 V, 15 V, 18 V, 24 V
Maximum Dual Supply Voltage 3.6 V, 26 V
Minimum Dual Supply Voltage 3 V, 10 V
Moisture Sensitive Yes
Operating Supply Current 65 mA
Output Signal Type Differential, Single
Pd - Power Dissipation 2890 mW
Product Type Audio Amplifiers
PSRR - Power Supply Rejection Ratio 60 dB
Factory Pack Quantity 160
Subcategory Audio ICs
Unit Weight 0.009108 oz

For more information, please refer to datasheet

Documents

TAS5716PAP Datasheet

More Information

The TAS5716 is a 20-W, efficient, digital audio power amplifier for driving stereo bridged-tied speakers. Two serial data inputs allow processing of up to four discrete audio channels and seamless integration to most digital audio processors and MPEG decoders, accepting a wide range of input data and clock rates. A fully programmable data path allows these channels to be routed to the internal speaker drivers or output via the subwoofer or headphone PWM outputs.
