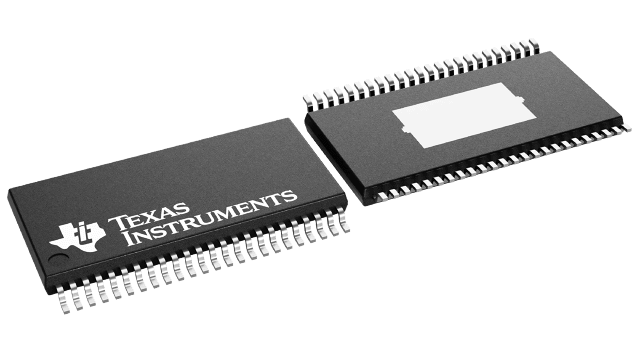

TAS5729MDDCA Texas Instruments - Yeehing Electronics

12-W stereo, 24-W mono, 4.5- to 26.4-V supply, digital input open loop Class-D audio amplifier w/ HP

Pricing (USD)

Quantity	Unit Price
1 — 99	3.643
100 — 249	2.97
250 — 999	2.334
1,000 +	1.39

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Audio Amplifiers
RoHS	Y
Series	TAS5729MD
Product	Audio Amplifiers
Class	Class-D
Output Power	55 mW
Mounting Style	SMD/SMT
Type	Digital
Package / Case	HTSSOP-48
THD plus Noise	0.15 %
Supply Voltage - Max	3.63 V
Supply Voltage - Min	2.97 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Input Type	Stereo
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	2.97 V to 3.63 V
Output Signal Type	Stereo
Product Type	Audio Amplifiers
Factory Pack Quantity	2000
Subcategory	Audio ICs
Unit Weight	0.007422 oz

For more information, please refer to datasheet

Documents

TAS5729MDDCA Datasheet

More Information

The TAS5729MD is a stereo I²S input device which includes a digital auto processor with two-band automatic gain limiting (AGL), digital equalization, course and fine volume control, and PWM level meter. The AGL is an enhanced dynamic range compression (DRC) function. The device can operate from a wide PVDD power supply range to enable use in numerous applications. The TAS5729MD operates with a nominal supply voltage from 4.5 to 24 VDC. The device is controlled by an I²C control port. The device has an integrated DirectPath™ headphone amplifier and line driver to increase system-level integration and reduce total solution costs.
