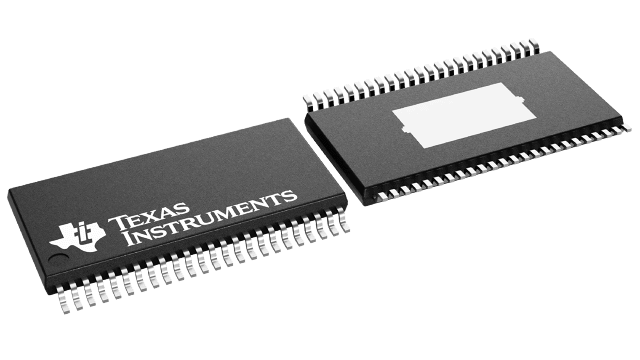

TAS5733LDCAR Texas Instruments - Yeehing Electronics

10-W stereo, 20-W mono, 8- to 16.5-V, digital input open loop Class-D audio amplifier w/ EQ & AGL

Pricing (USD)

Quantity	Unit Price
1 — 99	2.812
100 — 249	2.464
250 — 999	1.727
1,000 +	0.97

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Audio Amplifiers
RoHS	Y
Series	TAS5733L
Product	Audio Amplifiers
Class	Class-D
Output Power	10 W
Mounting Style	SMD/SMT
Type	Stereo
Package / Case	HTSSOP-48
Audio - Load Impedance	8 Ohms
THD plus Noise	0.3 %
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Input Type	Digital
Output Current	-
Output Type	2-Channel Stereo
Supply Type	Analog, Digital
Brand	Texas Instruments
Gain	-
Number of Channels	2 Channel
Shutdown	Shutdown
3 dB Bandwidth	-
Development Kit	-
GBP - Gain Bandwidth Product	-
Ib - Input Bias Current	-
Moisture Sensitive	Yes
Operating Supply Current	49 mA
Product Type	Audio Amplifiers
SR - Slew Rate	-
Factory Pack Quantity	2000
Subcategory	Audio ICs
Vos - Input Offset Voltage	-
Unit Weight	0.007422 oz

For more information, please refer to datasheet

Documents

TAS5733LDCAR Datasheet

More Information

The TAS5733L device is an efficient, digital-input audio amplifier for driving stereo speakers configured as a bridge tied load (BTL). In parallel bridge tied load (PBTL) in can produce higher power by driving the parallel outputs into a single lower impedance load. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers.
