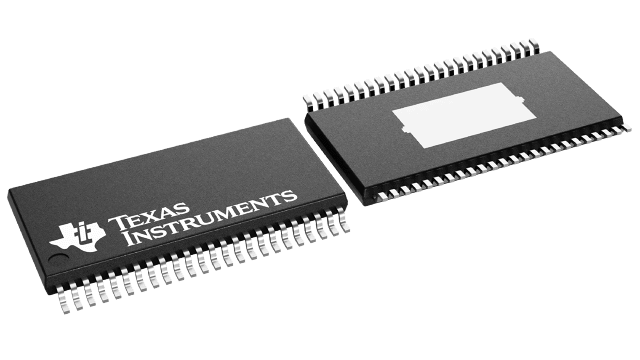

TAS5751MDCAR Texas Instruments - Yeehing Electronics
25-W stereo, 40-W mono, 8- to 26.4-V, digital input open loop Class-D audio amplifier w/ EQ & AGL
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.715 |
100 — 249 | 3.255 |
250 — 999 | 2.282 |
1,000 + | 1.29 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Audio Amplifiers |
RoHS | Y |
Series | TAS5751M |
Product | Audio Amplifiers |
Class | Class-D |
Output Power | 25 W |
Mounting Style | SMD/SMT |
Type | Stereo |
Package / Case | HTSSOP-48 |
Audio - Load Impedance | 8 Ohms |
THD plus Noise | 0.1 % |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 3 V |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Input Type | Digital |
Output Current | - |
Output Type | 2-Channel Stereo |
Supply Type | Analog, Digital |
Brand | Texas Instruments |
Gain | - |
Number of Channels | 2 Channel |
Shutdown | Shutdown |
3 dB Bandwidth | - |
Development Kit | - |
GBP - Gain Bandwidth Product | - |
Ib - Input Bias Current | - |
Moisture Sensitive | Yes |
Operating Supply Current | 49 mA |
Product Type | Audio Amplifiers |
SR - Slew Rate | - |
Factory Pack Quantity | 2000 |
Subcategory | Audio ICs |
Vos - Input Offset Voltage | - |
Unit Weight | 0.007422 oz |
For more information, please refer to datasheet
Documents
TAS5751MDCAR Datasheet |
More Information
The TAS5751M device is an efficient, digital-input audio amplifier for driving stereo speakers configured as a bridge tied load (BTL). In parallel bridge tied load (PBTL) in can produce higher power by driving the parallel outputs into a single lower impedance load. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers.
