Description

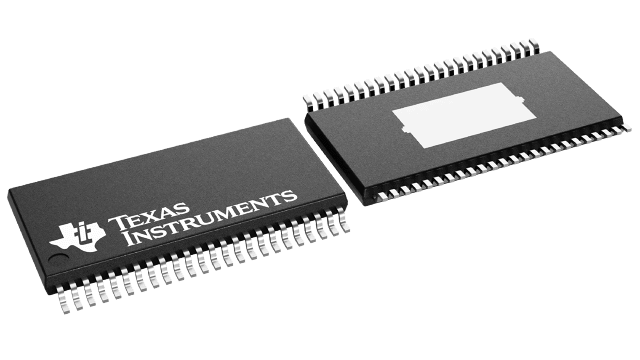

TAS5753MDDCAR Texas Instruments - Yeehing Electronics
20-W stereo, 39-W mono, 4.5-to 26.4-V, digital input open loop Class-D audio amplifier w/ AGL & HP
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.368 |
100 — 249 | 3.561 |
250 — 999 | 2.799 |
1,000 + | 0.40 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Audio Amplifiers |
RoHS | Y |
Series | TAS5753MD |
Product | Audio Amplifiers |
Class | Class-D |
Output Power | 20 W |
Mounting Style | SMD/SMT |
Type | Stereo |
Package / Case | HTSSOP-48 |
Audio - Load Impedance | 4 Ohms |
THD plus Noise | 0.15 % |
Supply Voltage - Max | 3.63 V |
Supply Voltage - Min | 2.97 V |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Input Type | Digital |
Supply Type | Single |
Brand | Texas Instruments |
Number of Channels | 2 Channel |
Shutdown | Shutdown |
Moisture Sensitive | Yes |
Product Type | Audio Amplifiers |
Factory Pack Quantity | 2000 |
Subcategory | Audio ICs |
Unit Weight | 0.008335 oz |
For more information, please refer to datasheet
Documents
TAS5753MDDCAR Datasheet |
More Information
The TAS5753MD device is an efficient, digital-input audio amplifier for driving stereo speakers configured as a bridge tied load (BTL). One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers.
