Texas Instruments
TAS5754MDCA
TAS5754MDCA
Couldn't load pickup availability

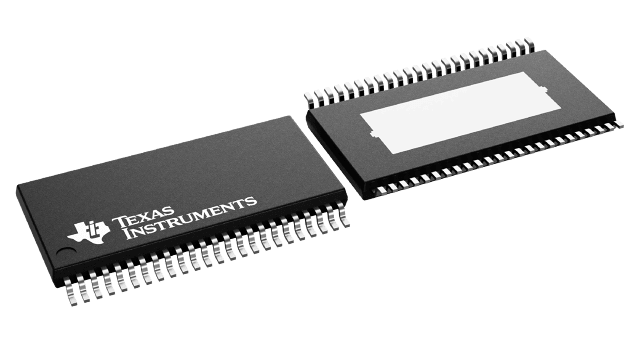

TAS5754MDCA Texas Instruments - Yeehing Electronics
40-W stereo, 61-W mono, 4.5- to 26.4-V supply, digital input Class-D audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.643 |
| 100 — 249 | 2.97 |
| 250 — 999 | 2.334 |
| 1,000 + | 1.39 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5754M |
| Product | Audio Amplifiers |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-48 |
| Minimum Operating Temperature | - 25 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Audio Amplifiers |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.011330 oz |
For more information, please refer to datasheet
Documents
| TAS5754MDCA Datasheet |
More Information
The TAS5754M device is a high-performance, stereo closed-loop amplifier with integrated audio processor with PurePath™ HybridFlow architecture. To convert from digital to analog, it uses a high performance DAC with Burr-Brown mixed signal heritage. It requires only two power supplies: one DVDD for low-voltage circuitry and one PVDD for high-voltage circuitry. It is controlled via a software control port using standard I²C communication. In the family, the TAS5756M uses traditional BD modulation, ensuring low distortion characteristics. The TAS5754M uses 1SPW modulation, reducing the idle current draw at the expense of slightly higher distortion.
