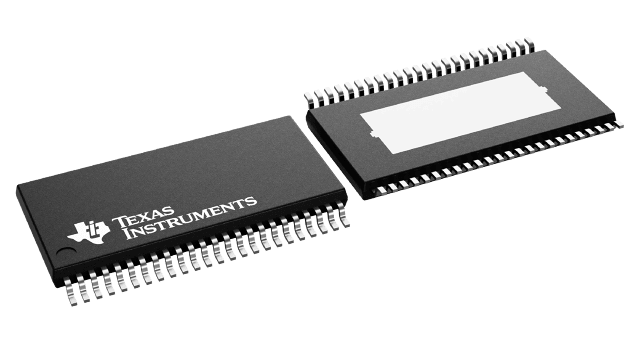

TAS5756MDCA Texas Instruments - Yeehing Electronics

30-W stereo, 40-W mono, 4.5- to 26.4-V supply, digital input Class-D audio amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	4.615
100 — 249	3.762
250 — 999	2.957
1,000 +	1.76

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Audio Amplifiers
RoHS	Y
Series	TAS5756M
Product	Audio Amplifiers
Mounting Style	SMD/SMT
Package / Case	HTSSOP-48
Minimum Operating Temperature	- 25 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Audio Amplifiers
Factory Pack Quantity	2000
Subcategory	Audio ICs
Unit Weight	0.011302 oz

For more information, please refer to datasheet

Documents

TAS5756MDCA Datasheet

More Information

The TAS5756M device is a high-performance, stereo closed-loop amplifier with integrated audio processor with architecture. To convert from digital to analog, the device uses a high performance DAC with Burr-Brown mixed signal heritage. It requires only two power supplies; one DVDD for low-voltage circuitry and one PVDD for high-voltage circuitry. It is controlled by a software control port using standard I2C communication. In the family, the TAS5756M uses traditional BD modulation, ensuring low distortion characteristics. The TAS5754M uses 1SPW modulation to reduce output ripple current, the expense of slightly higher distortion.
