Description

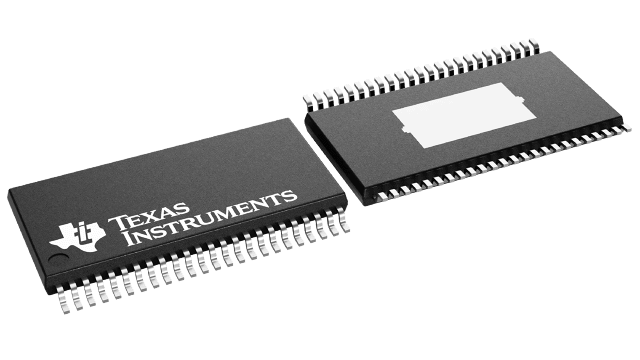

TAS5760LDCAR Texas Instruments - Yeehing Electronics
21-W stereo, 42-W mono, 4.5- to 16.4-V supply, digital input Class-D audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.163 |
| 100 — 249 | 3.648 |
| 250 — 999 | 2.558 |
| 1,000 + | 1.44 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5760L |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 21.9 W |
| Mounting Style | SMD/SMT |
| Type | Differential |
| Package / Case | HTSSOP-48 |
| THD plus Noise | 0.03 % |
| Supply Voltage - Max | 16.5 V |
| Supply Voltage - Min | 4.5 V |
| Minimum Operating Temperature | - 25 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Input Type | Stereo |
| Supply Type | Single |
| Brand | Texas Instruments |
| Gain | 30 dB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 4.5 V to 16.5 V |
| Output Signal Type | Digital |
| Product Type | Audio Amplifiers |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.007422 oz |
For more information, please refer to datasheet
Documents
| TAS5760LDCAR Datasheet |
More Information
The TAS5760L is a stereo I2S input device which includes hardware and software (I²C) control modes, integrated digital clipper, several gain options, and a wide power supply operating range to enable use in a multitude of applications. The TAS5760L operates with a nominal supply voltage from 4.5 to 15 VDC.
