Texas Instruments

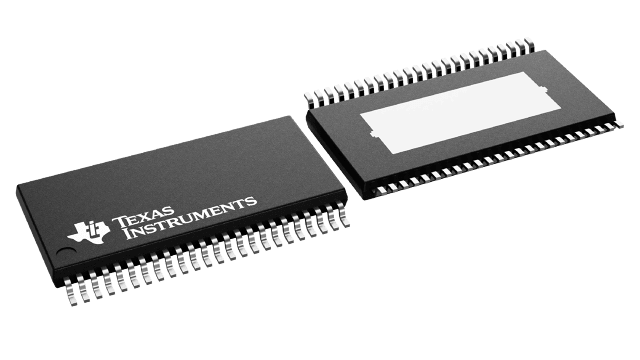

TAS5766MDCAR
TAS5766MDCAR
Regular price
$1.42 USD
Regular price
Sale price
$1.42 USD
Unit price
per
Couldn't load pickup availability
TAS5766MDCAR Texas Instruments - Yeehing Electronics
50-W stereo, 100-W mono, 4.5- to 26.4-V supply, digital input Class-D Smart Audio Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.744 |
| 100 — 249 | 3.053 |
| 250 — 999 | 2.399 |
| 1,000 + | 1.42 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5766M |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 50 W |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Stereo |
| Package / Case | HTSSOP-48 |
| Audio - Load Impedance | 4 Ohms |
| THD plus Noise | 0.05 % |
| Supply Voltage - Max | 26.4 V |
| Supply Voltage - Min | 4.5 V |
| Minimum Operating Temperature | - 25 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Output Current | 7.5 A |
| Brand | Texas Instruments |
| Gain | 20 dB |
| Number of Channels | 2 Channel |
| Shutdown | Shutdown |
| Development Kit | TAS5766MDCAEVM |
| Moisture Sensitive | Yes |
| Operating Supply Current | 12 mA, 24 mA |
| Product Type | Audio Amplifiers |
| SNR - Signal to Noise Ratio | 103 dB |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.007422 oz |
For more information, please refer to datasheet
Documents
| TAS5766MDCAR Datasheet |
More Information
The TAS576xM PurePath Smart Amp enhance the bass, sound fidelity and provide more loudness and at the same time drive a speaker to its thermal and mechanical limits.
