Texas Instruments

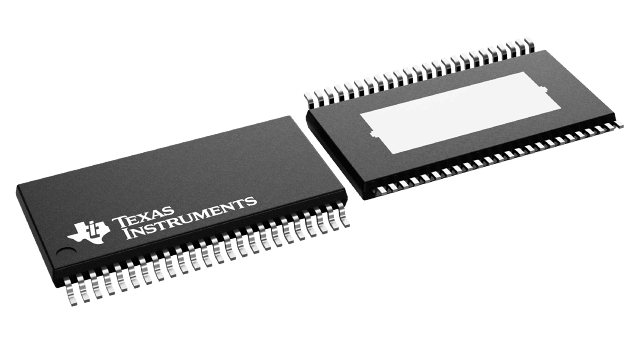

TAS5780MDCAR
TAS5780MDCAR
Regular price
$2.07 USD
Regular price
Sale price
$2.07 USD
Unit price
per
Couldn't load pickup availability
TAS5780MDCAR Texas Instruments - Yeehing Electronics
20-W stereo, 40-W mono, 4.5- to 26.4-V supply, digital input Class-D audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.45 |
| 100 — 249 | 4.443 |
| 250 — 999 | 3.492 |
| 1,000 + | 2.07 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TAS5780M |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 20 W, 40 W |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Stereo |
| Package / Case | HTSSOP-48 |
| Audio - Load Impedance | 4 Ohms, 8 Ohms |
| THD plus Noise | 0.02 % |
| Supply Voltage - Max | 26.4 V |
| Supply Voltage - Min | 2.9 V |
| Minimum Operating Temperature | - 25 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Output Type | 2-Channel Stereo |
| Brand | Texas Instruments |
| Gain | 26 dB |
| Number of Channels | 2 Channel |
| Shutdown | Shutdown |
| Development Kit | TAS5780MEVM |
| Moisture Sensitive | Yes |
| Product Type | Audio Amplifiers |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.011312 oz |
For more information, please refer to datasheet
Documents
| TAS5780MDCAR Datasheet |
More Information
The TAS5780M device is a high-performance, stereo closed-loop Class-D amplifier with integrated audio processor with 96-kHz architecture. To convert from digital to analog, the device uses a high performance DAC with Burr Brown™ audio technology. It requires only two power supplies: one DVDD for low-voltage circuitry and one PVDD for high-voltage circuitry. It is controlled by a software control port using standard I2C communication.
