TAS5806MDCPR Texas Instruments - Yeehing Electronics

23-W stereo, 45-W mono, 4.5- to 26.4-V, digital input Class-D audio amplifier w/ processing & P2P

Pricing (USD)

Quantity	Unit Price
1 — 99	1.778
100 — 249	1.558
250 — 999	1.092
1,000 +	0.62

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Audio Amplifiers
RoHS	Y
Series	TAS5806M
Product	Audio Amplifiers
Class	Class-D
Output Power	23 W x 2 at 8 Ohms, 45 W x 1 at 4 Ohms
Mounting Style	SMD/SMT
Type	Stereo

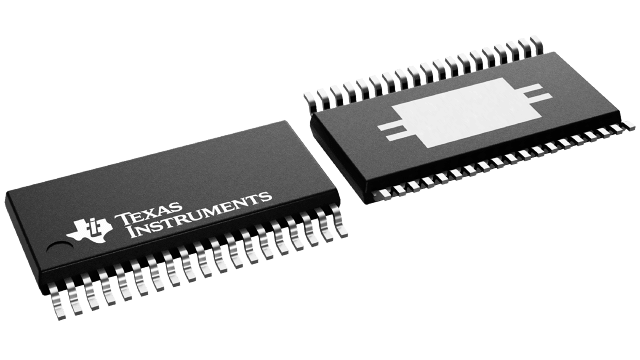

Package / Case	TSSOP-38
THD plus Noise	0.03 %
Supply Voltage - Max	3.63 V
Supply Voltage - Min	1.62 V
Minimum Operating Temperature	- 25 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Input Type	Digital
Brand	Texas Instruments
Number of Channels	2 Channel
Shutdown	Shutdown
3 dB Bandwidth	768 kHz
Moisture Sensitive	Yes
Operating Supply Current	16.5 mA
Product Type	Audio Amplifiers
Factory Pack Quantity	2000
Subcategory	Audio ICs
Vos - Input Offset Voltage	6.5 mV

For more information, please refer to datasheet

Documents

TAS5806MDCPR Datasheet

More Information

The TAS5806M is a high-efficiency, stereo, closed-loop Class-D amplifier offering a cost-effective digital input solution with low power dissipation and sound enrichment. The device’s integrated audio processor and 96 kHz architecture support advanced audio process flow, including SRC, 15 BQs per channel, volume control, audio mixing, 3-band 4th order DRC, full-band AGL, THD manager and level meter.
