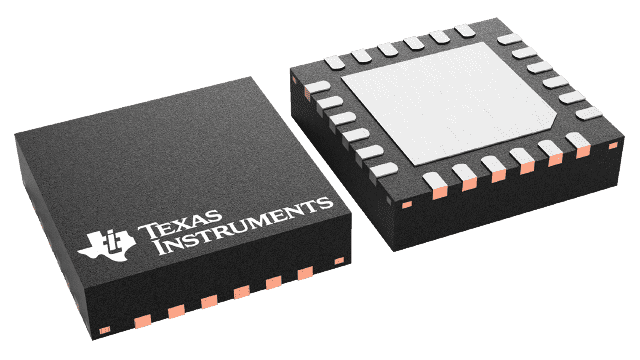

TCA6416ARTWR Texas Instruments - Yeehing Electronics

16-bit translating 1.65- to 5.5-V I2C/SMBus I/O expander with interrupt, reset & config registers

Pricing (USD)

Quantity	Unit Price
1 — 99	1.232
100 — 249	1.018
250 — 999	0.731
1,000 +	0.44

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Interface - I/O Expanders
RoHS	Y
Number of I/Os	16 I/O
Interface Type	I2C, Serial, SMBus
Maximum Clock Frequency	400 kHz
Operating Supply Voltage	1.65 V to 5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WQFN-24
Packaging	Reel
Features	Configuration Registers, Interrupt Pin, Reset Pin
Output Voltage	- 0.5 V to 6.5 V
Series	TCA6416A
Brand	Texas Instruments
Logic Family	TCA6416A
Moisture Sensitive	Yes
Product Type	I/O Expanders
Factory Pack Quantity	3000
Subcategory	Interface ICs
Unit Weight	0.001270 oz

For more information, please refer to datasheet

Documents

TCA6416ARTWR Datasheet

More Information

The TCA6416A is a 24-pin device that provides 16-bits of general purpose parallel input/output (I/O) expansion for the two-line bidirectional I2C bus (or SMBus) protocol. The device can operate with a power supply voltage ranging from 1.65 V to 5.5 V on the I2C bus side (VCCI) and a power supply voltage ranging from 1.65 V to 5.5 V on the P-port side (VCCP).
