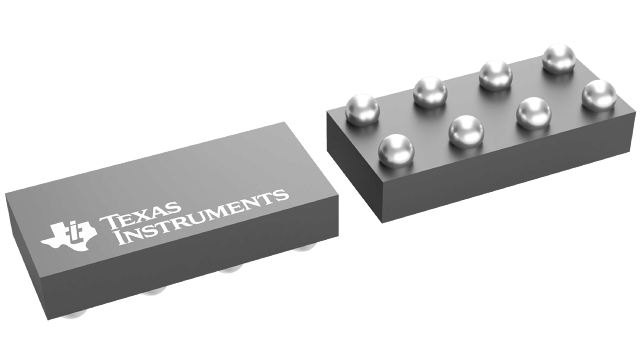

TCA9406YZPR Texas Instruments - Yeehing Electronics

2-bit bidirectional 1MHz I2C/SMBus voltage level translator with internal pull-up resistor

Pricing (USD)

Quantity	Unit Price
1 — 99	0.554
100 — 249	0.376
250 — 999	0.29
1,000 +	0.14

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TCA9406YZPR Datasheet

More Information

The TCA9406 is a 2-bit bidirectional I2C and SMBus voltage-level translator with an output enable (OE) input. It is operational from 1.65 V to 3.6 V on the A-side, referenced toVCCA, and from 2.3 V to 5.5 V on the B-side, referenced to VCCB. This allows the device to interface between lower and higher logic signal levels at any of the typical 1.8-V, 2.5-V, 3.3-V, and
