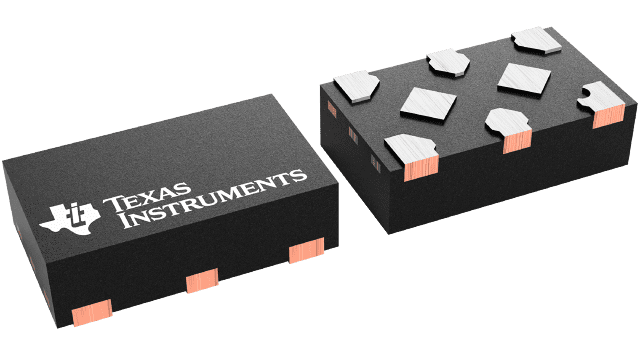

TCA9416DTMR Texas Instruments - Yeehing Electronics

Ultra-low voltage I2C translator with rise time accelerators

Pricing (USD)

Quantity	Unit Price
1 — 99	0.618
100 — 249	0.475
250 — 999	0.35
1,000 +	0.17

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TCA9416DTMR Datasheet

More Information

The TCA9416 is a 2-bit bidirectional I2C and SMBus voltage-level translator with an output enable (OE) input and rising and falling edge accelerators. It is operational from 1.08 V to 3.6 V on both the A-side and B-side. This allows the device to interface between lower and higher logic signal levels at any of the typical 1.2-V, 1.8-V, 2.5-V, and 3.3-V supply rails.
