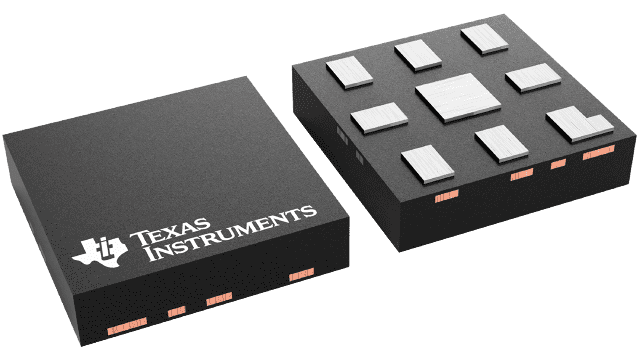

TCA9509RVHR


YeeHing #: Y007-TCA9509RVHR
Inventory: 8200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TCA9509RVHR Texas Instruments - Yeehing Electronics

2-bit level-translating 400-kHz I2C/SMBus buffer/repeater with internal 1-mA current source

Pricing (USD)

Quantity Unit Price
1 — 99 0.851
100 — 249 0.703
250 — 999 0.505
1,000 + 0.27

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TCA9509RVHR Datasheet

More Information

This TCA9509 integrated circuit is an I2C bus/SMBus Repeater for use in I2C/SMBus systems. It can also provide bidirectional voltage-level translation (up-translation/down-translation) between low voltages (down to 0.9 V) and higher voltages (2.7 V to 5.5 V) in mixed-mode applications. This device enables I2C and similar bus systems to be extended, without degradation of performance even during level shifting.
