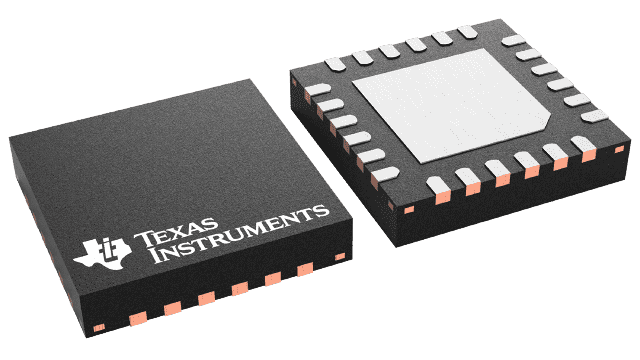

TCA9539RTWR Texas Instruments - Yeehing Electronics

16-bit 1.65- to 5.5-V I2C/SMBus I/O expander with interrupt, reset & config registers

Pricing (USD)

Quantity	Unit Price
1 — 99	1.434
100 — 249	1.184
250 — 999	0.851
1,000 +	0.45

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TCA9539RTWR Datasheet

More Information

The TCA9539 is a 24-pin device that provides 16 bits of general purpose parallel input and output (I/O) expansion for the two-line bidirectional I2C bus (or SMBus protocol). The device can operate with a power supply voltage (VCC) range from 1.65 V to 5.5 V. The device supports 100-kHz (I2C Standard mode) and 400-kHz (I2C Fast mode) clock frequencies. I/O expanders such as the TCA9539 provide a simple solution when additional I/Os are needed for switches, sensors, push-buttons, LEDs, fans, and other similar devices.
