TCAN1043DMTRQ1 Texas Instruments - Yeehing Electronics
Automotive CAN FD transceiver with flexible data-rate and wake input
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.083 |
100 — 249 | 1.721 |
250 — 999 | 1.236 |
1,000 + | 0.65 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | CAN Interface IC |
RoHS | Y |
Mounting Style | SMD/SMT |

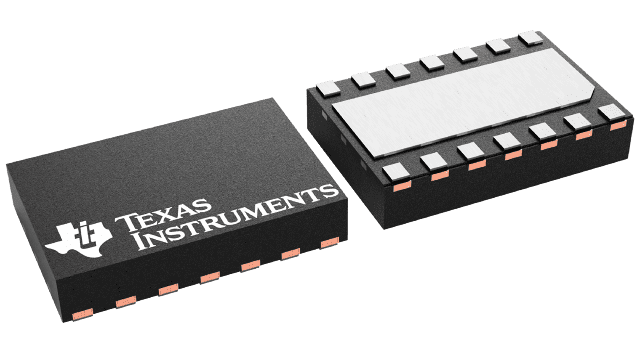

Package / Case | VSON-14 |
Series | TCAN1043-Q1 |
Type | High Speed |
Data Rate | 2 Mb/s |
Number of Drivers | 1 Driver |
Number of Receivers | 1 Receiver |
Supply Voltage - Max | 5.5 V |
Supply Voltage - Min | 4.5 V |
Operating Supply Current | 70 mA |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 125 C |
Packaging | Reel |
Product | CAN Transceivers |
Brand | Texas Instruments |
Development Kit | TCAN1043DEVM |
Operating Supply Voltage | 4.5 V to 5.5 V |
Pd - Power Dissipation | 126 mW |
Product Type | CAN Interface IC |
Propagation Delay Time | 50 ns |
Protocol Supported | CAN |
Factory Pack Quantity | 3000 |
Subcategory | Interface ICs |
For more information, please refer to datasheet
Documents
TCAN1043DMTRQ1 Datasheet |
More Information
The TCAN1043xx-Q1 meets the physical layer requirements of the ISO 11898–2 (2016) High Speed Controller Area Network (CAN) specification providing an interface between the CAN bus and the CAN protocol controller. These devices support both classical CAN and CAN FD up to 2 megabits per second (Mbps). Devices with part numbers that include the suffix “G” are designed for CAN FD data rates up to 5 Mbps. The TCAN1043xx-Q1 allows for system-level reductions in battery current consumption by selectively enabling (via the INH output pin) the various power supplies that may be present on a node. This allows an ultra-low-current sleep state in which power is gated to all system components except for the TCAN1043xx-Q1, which remains in a low-power state monitoring the CAN bus.
