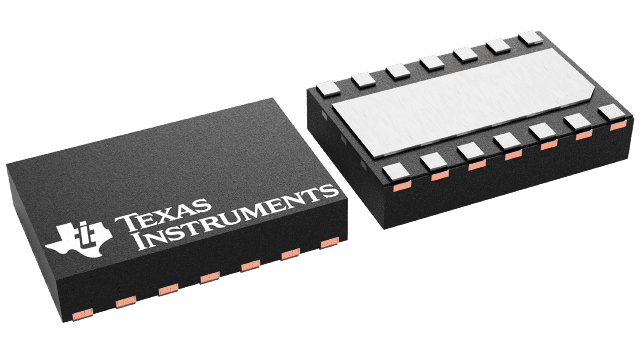

TCAN1043GDMTTQ1


YeeHing #: Y007-TCAN1043GDMTTQ1
Inventory: 3000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TCAN1043GDMTTQ1 Texas Instruments - Yeehing Electronics

Fault Protected CAN Transceiver With CAN FD and Wake Input

Pricing (USD)

Quantity Unit Price
1 — 99 2.5
100 — 249 2.065
250 — 999 1.483
1,000 + 0.78

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category CAN Interface IC
RoHS Y
Mounting Style SMD/SMT
Package / Case VSON-14
Series TCAN1043G-Q1
Type High Speed
Data Rate 5 Mb/s
Number of Drivers 1 Driver
Number of Receivers 1 Receiver
Supply Voltage - Max 5.5 V
Supply Voltage - Min 4.5 V
Operating Supply Current 70 mA
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 125 C
Packaging Reel
Product CAN Transceivers
Brand Texas Instruments
Moisture Sensitive Yes
Operating Supply Voltage 4.5 V to 5.5 V
Pd - Power Dissipation 126 mW
Product Type CAN Interface IC
Propagation Delay Time 50 ns
Protocol Supported CAN
Factory Pack Quantity 250
Subcategory Interface ICs
Unit Weight 0.001337 oz

For more information, please refer to datasheet

Documents

TCAN1043GDMTTQ1 Datasheet

More Information

The TCAN1043xx-Q1 meets the physical layer requirements of the ISO 11898–2 (2016) High Speed Controller Area Network (CAN) specification providing an interface between the CAN bus and the CAN protocol controller. These devices support both classical CAN and CAN FD up to 2 megabits per second (Mbps). Devices with part numbers that include the suffix “G” are designed for CAN FD data rates up to 5 Mbps. The TCAN1043xx-Q1 allows for system-level reductions in battery current consumption by selectively enabling (via the INH output pin) the various power supplies that may be present on a node. This allows an ultra-low-current sleep state in which power is gated to all system components except for the TCAN1043xx-Q1, which remains in a low-power state monitoring the CAN bus.
