TCAN1043HGDMTRQ1 Texas Instruments - Yeehing Electronics

Automotive 70-V bus-fault-protected CAN FD transceiver with wake input and 5-Mbps flexible data-rate

Pricing (USD)

Quantity	Unit Price
1 — 99	2.083
100 — 249	1.721
250 — 999	1.236
1,000 +	0.65

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	CAN Interface IC
RoHS	Y
Mounting Style	SMD/SMT

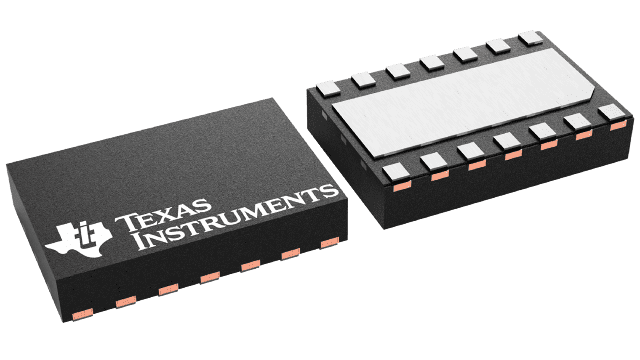

Package / Case	VSON-14
Series	TCAN1043HG-Q1
Type	High Speed
Data Rate	5 Mb/s
Number of Drivers	1 Driver
Number of Receivers	1 Receiver
Supply Voltage - Max	5.5 V
Supply Voltage - Min	4.5 V
Operating Supply Current	70 mA
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Product	CAN Transceivers
Brand	Texas Instruments
Development Kit	TCAN1043DEVM
Operating Supply Voltage	4.5 V to 5.5 V
Pd - Power Dissipation	126 mW
Product Type	CAN Interface IC
Propagation Delay Time	50 ns
Protocol Supported	CAN
Factory Pack Quantity	3000
Subcategory	Interface ICs

For more information, please refer to datasheet

Documents

TCAN1043HGDMTRQ1 Datasheet

More Information

The TCAN1043xx-Q1 meets the physical layer requirements of the ISO 11898–2 (2016) High Speed Controller Area Network (CAN) specification providing an interface between the CAN bus and the CAN protocol controller. These devices support both classical CAN and CAN FD up to 2 megabits per second (Mbps). Devices with part numbers that include the suffix “G” are designed for CAN FD data rates up to 5 Mbps. The TCAN1043xx-Q1 allows for system-level reductions in battery current consumption by selectively enabling (via the INH output pin) the various power supplies that may be present on a node. This allows an ultra-low-current sleep state in which power is gated to all system components except for the TCAN1043xx-Q1, which remains in a low-power state monitoring the CAN bus.
