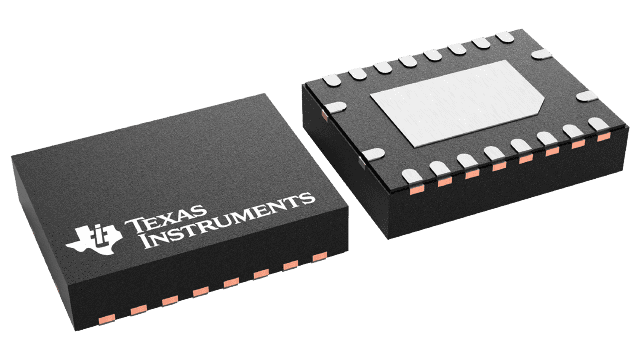

TCAN4550RGYT


YeeHing #: Y007-TCAN4550RGYT
Inventory: 3800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TCAN4550RGYT Texas Instruments - Yeehing Electronics

CAN FD controller with integrated transceiver

Pricing (USD)

Quantity Unit Price
1 — 99 2.062
100 — 249 1.807
250 — 999 1.267
1,000 + 0.82

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category CAN Interface IC
RoHS Y
Mounting Style SMD/SMT
Package / Case VQFN-20
Series TCAN4550
Type CAN FD Controller
Data Rate 5 Mb/s
Supply Voltage - Max 24 V
Supply Voltage - Min 6 V
Operating Supply Current 180 mA
Packaging Reel
Product CAN Transceivers
Brand Texas Instruments
Moisture Sensitive Yes
Operating Supply Voltage 6 V to 24 V
Product Type CAN Interface IC
Propagation Delay Time 55 ns
Protocol Supported SBC, CAN
Factory Pack Quantity 250
Subcategory Interface ICs

For more information, please refer to datasheet

Documents

TCAN4550RGYT Datasheet

More Information

The TCAN4550 is a CAN FD controller with an integrated CAN FD transceiver supporting data rates up to 8 Mbps. The CAN FD controller meets the specifications of the ISO11898-1:2015 high speed controller area network (CAN) data link layer and meets the physical layer requirements of the ISO11898–2:2016 high speed CAN specification. The TCAN4550 provides an interface between the CAN bus and the system processor through serial peripheral interface (SPI), supporting both classic CAN and CAN FD, allowing port expansion or CAN support with processors that do not support CAN FD. The TCAN4550 provides CAN FD transceiver functionality: differential transmit capability to the bus and differential receive capability from the bus. The device supports wake up via local wake up (LWU) and bus wake using the CAN bus implementing the ISO11898-2:2016 Wake Up Pattern (WUP).
