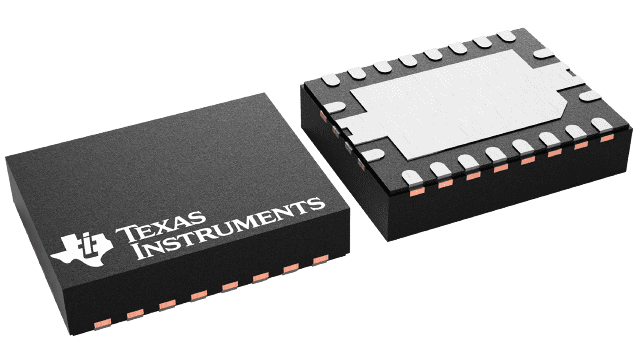

TCAN4550RGYTQ1 Texas Instruments - Yeehing Electronics
Automotive system basis chip (SBC) with integrated CAN FD controller & transceiver
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.543 |
100 — 249 | 2.228 |
250 — 999 | 1.562 |
1,000 + | 0.88 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | CAN Interface IC |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | VQFN-20 |
Series | TCAN4550-Q1 |
Type | CAN FD Controller |
Data Rate | 8 Mb/s |
Number of Drivers | 1 Driver |
Number of Receivers | 1 Receiver |
Supply Voltage - Max | 30 V |
Supply Voltage - Min | 5.5 V |
Operating Supply Current | 180 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Packaging | Reel |
Product | CAN Transceivers |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Operating Supply Voltage | 5.5 V to 30 V |
Product Type | CAN Interface IC |
Propagation Delay Time | 85 ns |
Factory Pack Quantity | 250 |
Subcategory | Interface ICs |
For more information, please refer to datasheet
Documents
TCAN4550RGYTQ1 Datasheet |
More Information
The TCAN4550-Q1 is a CAN FD controller with an integrated CAN FD transceiver supporting data rates up to 8 Mbps. The CAN FD controller meets the specifications of the ISO11898-1:2015 high speed controller area network (CAN) data link layer and meets the physical layer requirements of the ISO11898–2:2016 high speed CAN specification.
