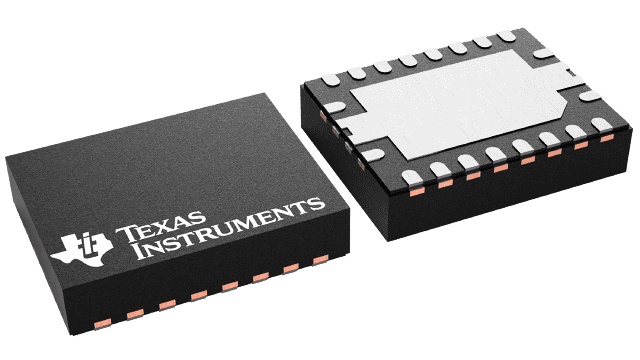

TCAN4551RGYRQ1


YeeHing #: Y007-TCAN4551RGYRQ1
Inventory: 4400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TCAN4551RGYRQ1 Texas Instruments - Yeehing Electronics

Automotive control area network flexible data rate (CAN FD) controller with integrated transceiver

Pricing (USD)

Quantity Unit Price
1 — 99 2.249
100 — 249 1.857
250 — 999 1.334
1,000 + 2.74

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

TCAN4551RGYRQ1 Datasheet

More Information

The TCAN4551-Q1 is a CAN FD controller with an integrated CAN FD transceiver supporting data rates up to 8 Mbps. The CAN FD controller meets the specifications of the ISO11898-1:2015 high speed controller area network (CAN) data link layer and meets the physical layer requirements of the ISO11898–2:2016 high speed CAN specification. The TCAN4551-Q1 provides an interface between the CAN bus and the system processor through serial peripheral interface (SPI), supporting both classic CAN and CAN FD, allowing port expansion of CAN and CAN FD or CAN support with processors that do not support CAN FD. The TCAN4551-Q1 provides CAN FD transceiver functionality: differential transmit capability to the bus and differential receive capability from the bus. The device supports wake up via local wake up (LWU) and bus wake using the CAN bus implementing the ISO11898-2:2016 Wake Up Pattern (WUP).
